ESD Antifatigue Mat

Polstar ESD Antifatigue Mats are suitable for assembly lines and other workplaces, where long-standing jobs are frequently required, to reduce workers’ fatigue from their jobs. Round shape rugged surface provides a finger-pressure therapy effect on feet, and the formed smooth materials used make physical workers comfortable by helping to release the stress of the workers.

Specially designed and constructed ESD antifatigue mats not only have a good function to relieve the stress of feet and legs, but also give a quick pathway for the static electricity charged in human body to the ground.

There are 8 different types of ESD antifatigue mats and 1 type of ESD antifatigue mat in Roll in our range. This classification was done by the materials used.

Type A & E are made of conductive Nitrile-Butadiene Rubber (NBR) and soft Polyurethane (PU) sponge, Type C, D & K are made of 100% Conductive or Static Dissipative NBR, Type N is made of 100% PU material, Type H & T are made of 100% foamed rubber and ESD antifatigue mat in Roll is made of foamed polyvinyl chloride (PVC).

On the other hand, our ESD antifatigue mats can be classified as a normal edge shape, an interlocking design and ESD antifatigue mat in Roll by their shapes. The normal edge shape is suitable for an individual worker while the interlocking design and the ESD antifatigue mat in Roll are ideal for a wide area, where a certain whole place is required as “Antifatigue Zone”.

The ESD antifatigue mats are also classified into 2 types by their ESD properties. Type A, E, C, D & K (M15M-022) have conductive readings whereas Type N, H, I, K (M15M-021) & ESD antifatigue mat in Roll have static dissipative readings.

Product Enquiry

Description

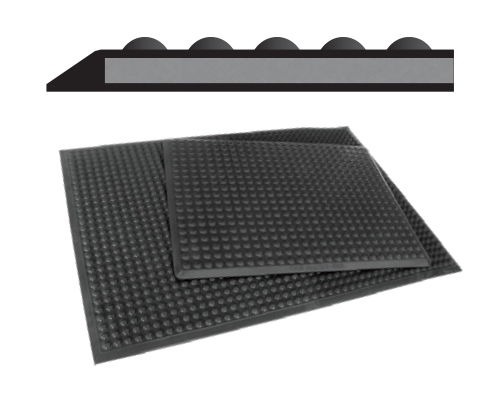

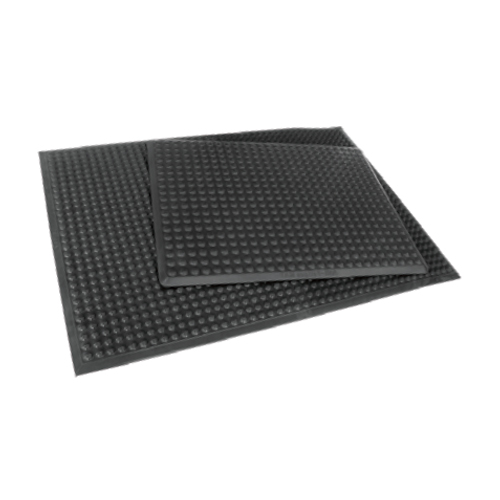

Type A

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-002-BK Conductive NBR +
High Elastic PU Foam
Black 3.6 kg 16 mm 60 cm x 90 cm 10e5 ~ 10e6 ohm
M15M-003-BK 1.8 kg 45 cm x 60 cm

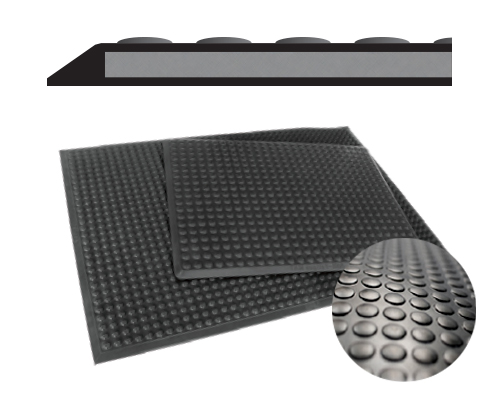

Type E

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-011-BK Conductive NBR +
High Elastic PU Foam
Black 3.4 kg 13 mm 60 cm × 90 cm 10e5 ~ 10e6 ohm
M15M-012-BK 2.1 kg 45 cm × 60 cm

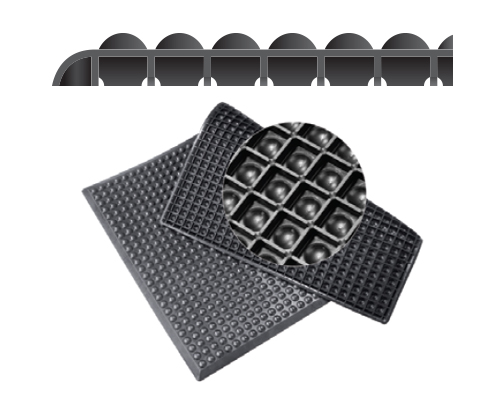

Type C

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-005-BK Conductive NBR Black 3.5 kg 16 mm 60 cm × 90 cm 10e5 ~ 10e6 ohm

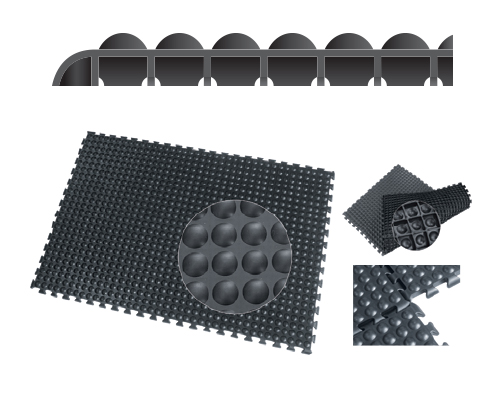

Type D

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-004-BK Conductive NBR Black 2.7 kg 16 mm 60 cm × 90 cm 10e5 ~ 10e6 ohm

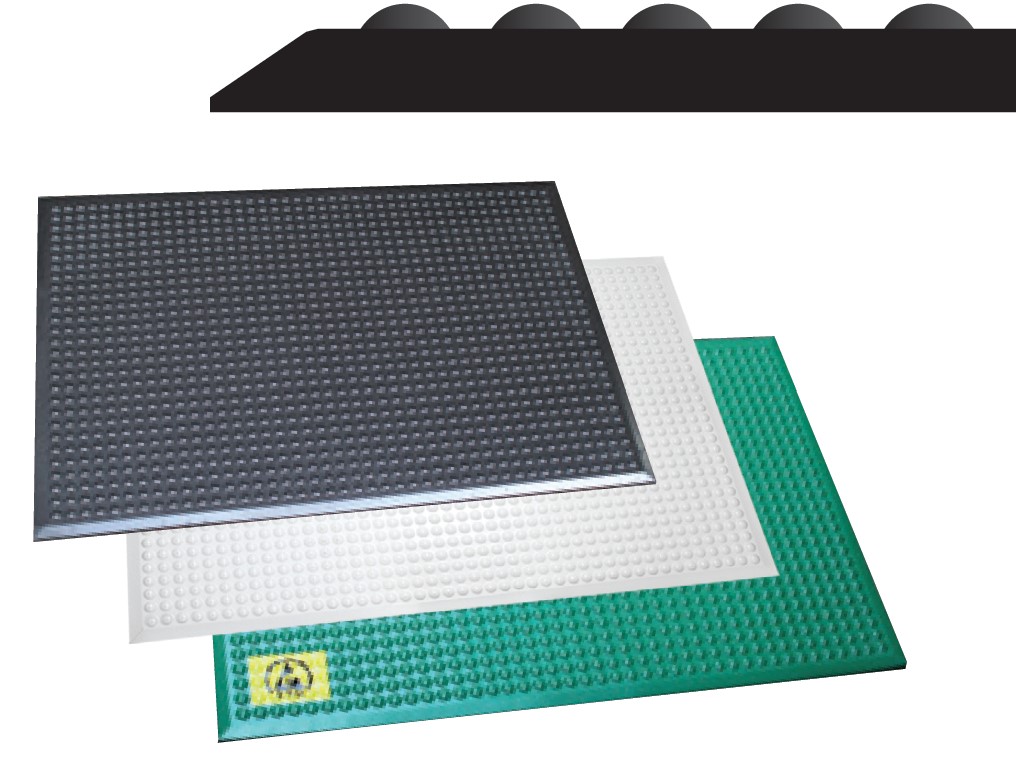

Type N

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-023-BK Polyurethane Black 2.7 kg 15 mm 60 cm × 90 cm 10e8 ~ 10e9 ohm
M15M-023-WH White
M15M-023-GE Green

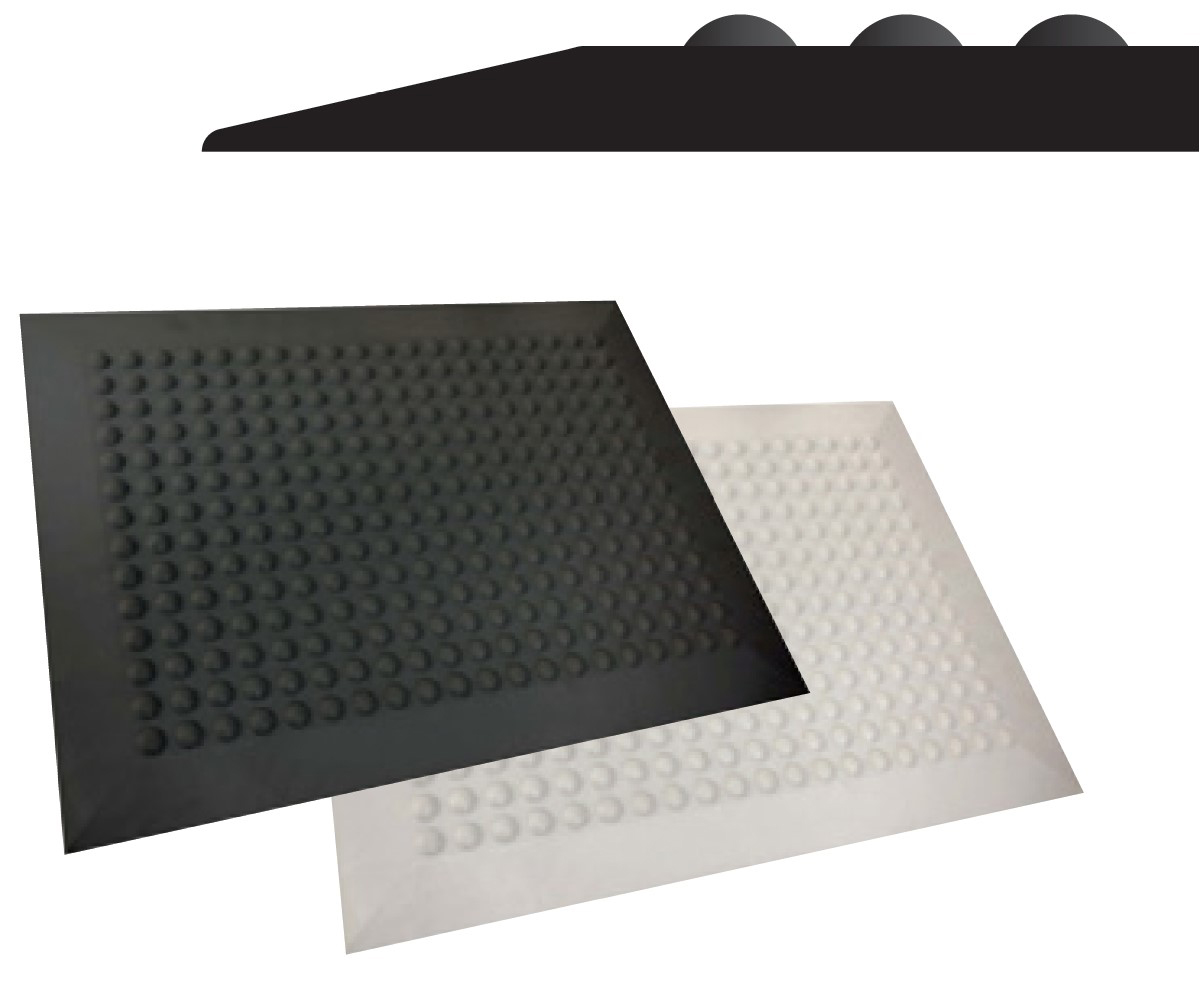

Type K

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-021-GR NBR Grey 2.3 kg 15 mm 45 cm × 60 cm 10e7 ~ 10e9 ohm
M15M-021-BK Black 10e5 ~ 10e6 ohm

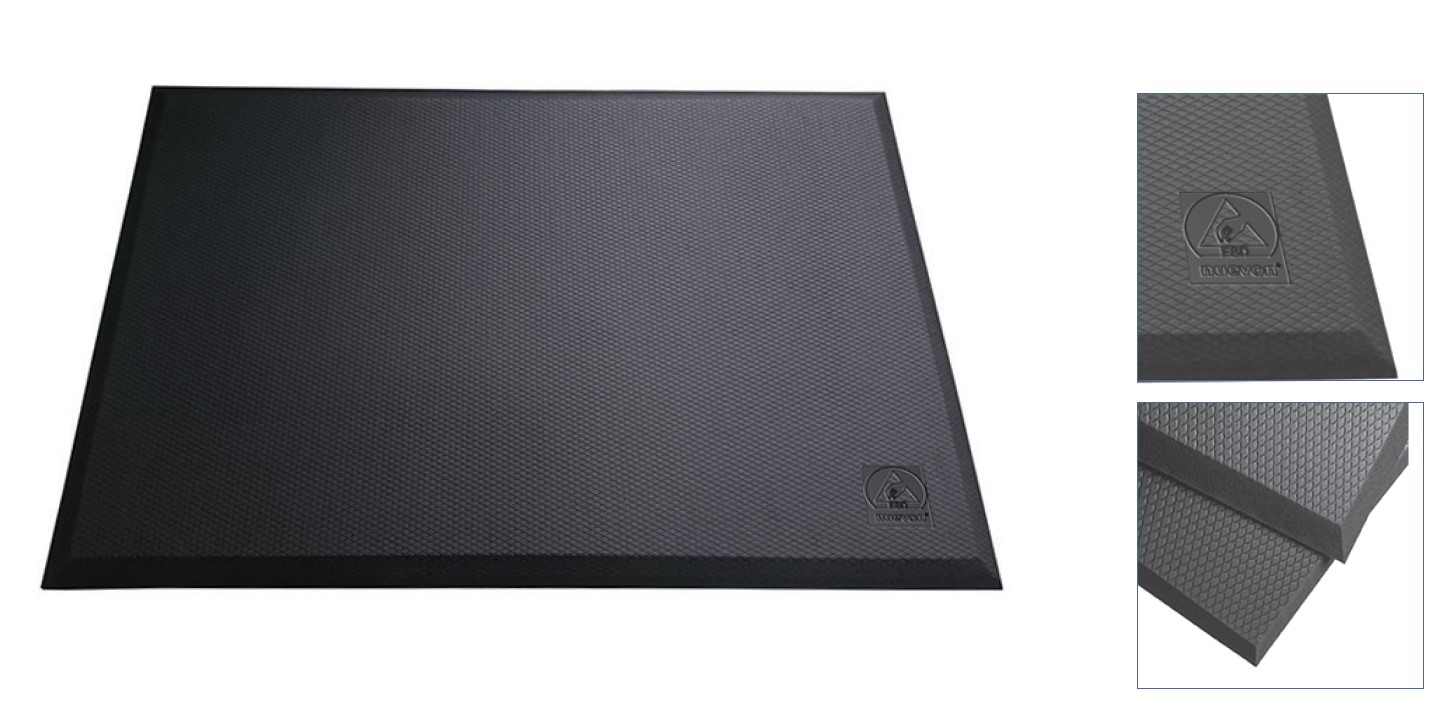

Type H

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-014-BK Foamed rubber Black 1.6 kg 17 mm 500 × 900 mm (20”×36”) 10e6 ~ 10e9 ohm
M15M-015-BK 600 × 900 mm (24”×36”)
M15M-016-BK 900 × 1500 mm (35”×59”)

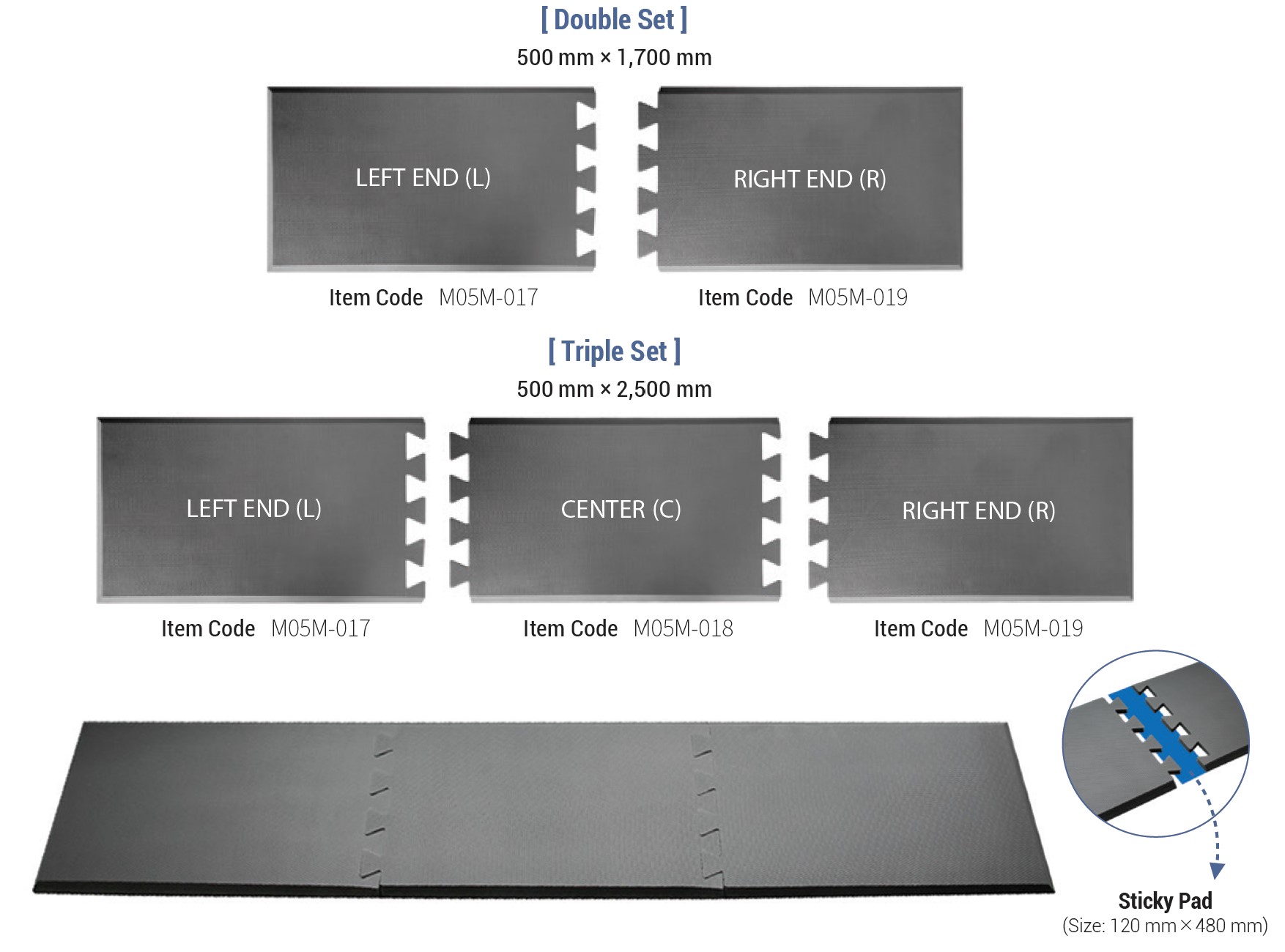

Type T

Item Code Material Color Weight/mat Thickness Size/mat Surface Resistance
M15M-017-BK Foamed rubber Black 1.3 kg 17 mm 500 mm × 869 mm 10e6 ~ 10e9 ohm
M15M-018-BK 500 mm × 865 mm
M15M-019-BK 500 mm × 869 mm
