Conductive & Static Dissipative Vinyl Flooring Tiles are the best solution for making a ESD safe floor, which reduces static
build up on the people and the materials on the floor. The Tiles are directly installed on the ground floor and they are also
commonly used as the finishing material of Raised (Access) Floor System.
The electrical properties are permanent and they are not affected by ambient humidity. High contents of poly vinyl and
high-pressure manufacturing process provide an excellent indentation, wear and chemical resistances.

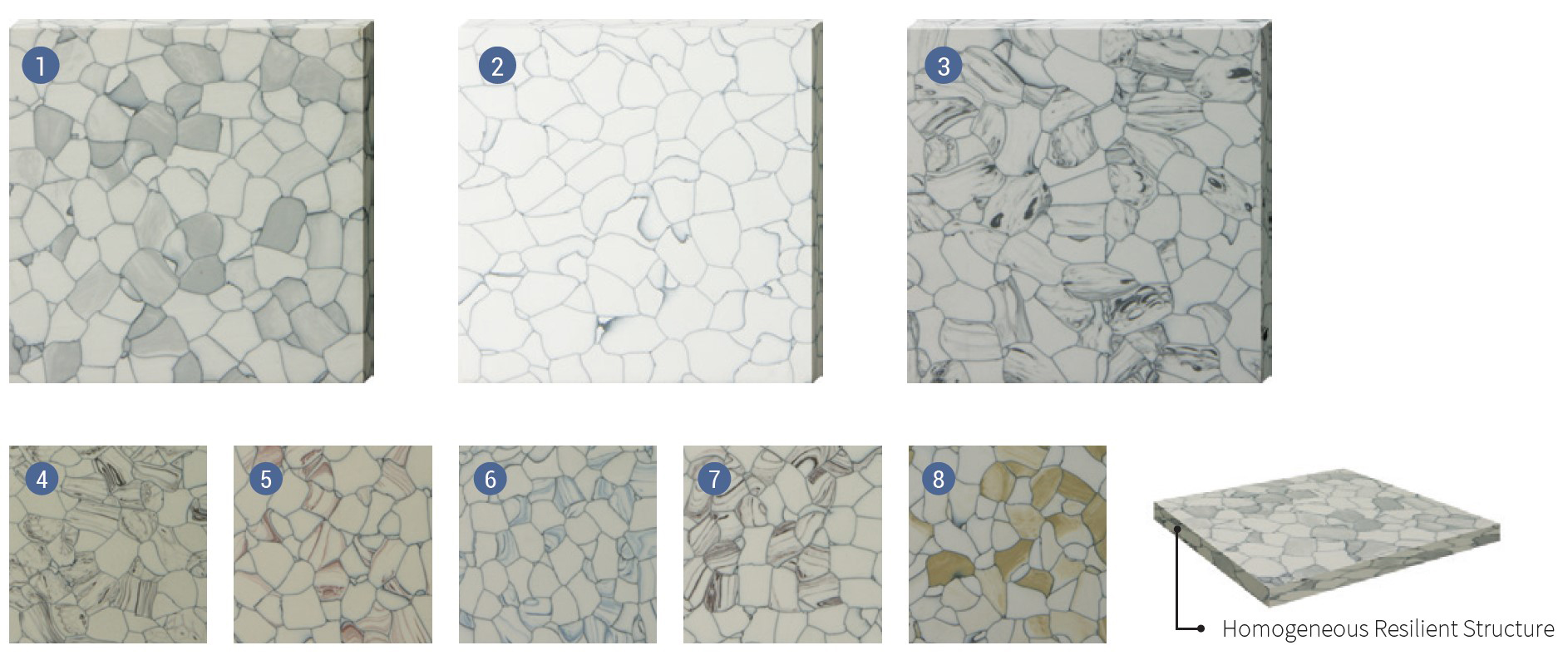

Conductive/Dissipative Tiles
Description
Item Code | M01M-000 (Conductive) | M02M-000 (Static Dissipative) | |
Thickness | 2 mm, 3 mm | ||
Size | 600×600, 610×610, 900×900 in mm | ||
Surface Resistance | Conductive | 2.5×10e4 ~ 1×10e6 ohm | |
Static Dissipative | 10e6 ~ 10e8 ohm |
