Description

Medium Filter (Box type)

Item Code M23K-001
Media Micro Glass Fiber
Frame Particle Board
Separator Aluminium
Sealant Polyurethane (PU) Resin
Gasket Neoprene Sponge

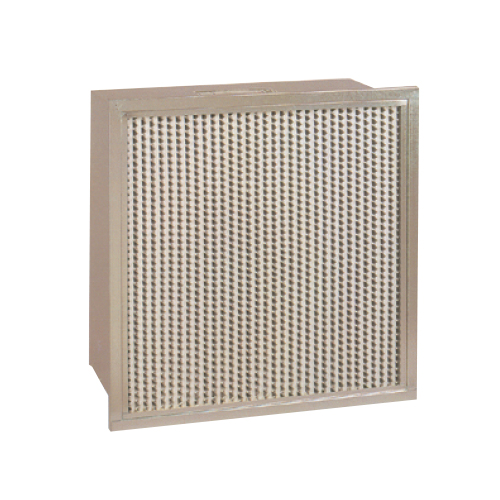

Medium Filter (Header type)

Item Code M23K-200
Media Micro Glass Fiber
Frame Galvanized Steel
Separator Aluminium
Sealant Polyurethane (PU) Resin
Gasket Neoprene Sponge



Box type Size (mm) Head type Size (mm) Pressure Drop (mmAq) Air Volume (CMM) Capture Efficiency
W L D W L D Initial Final General Various 0.5um, %
610 305 150 594 287 150 17 30 14 21 95
610 610 150 594 594 150 28 42
610 305 292 594 287 292 28 42
610 610 292 594 594 292 56 84
610 305 150 594 287 150 15 30 14 21 85
610 610 150 594 594 150 28 42
610 305 292 594 287 292 28 42
610 610 292 594 594 292 56 84
610 305 150 594 287 150 13 30 14 21 65
610 610 150 594 594 150 28 42
610 305 292 594 287 292 28 42
610 610 292 594 594 292 56 84
