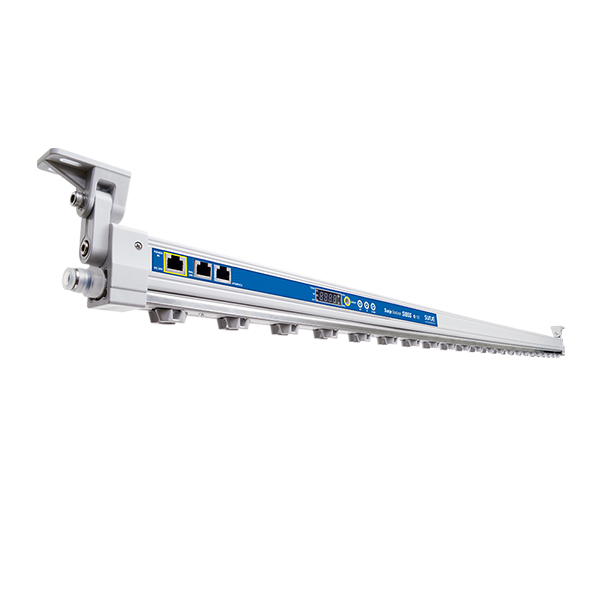

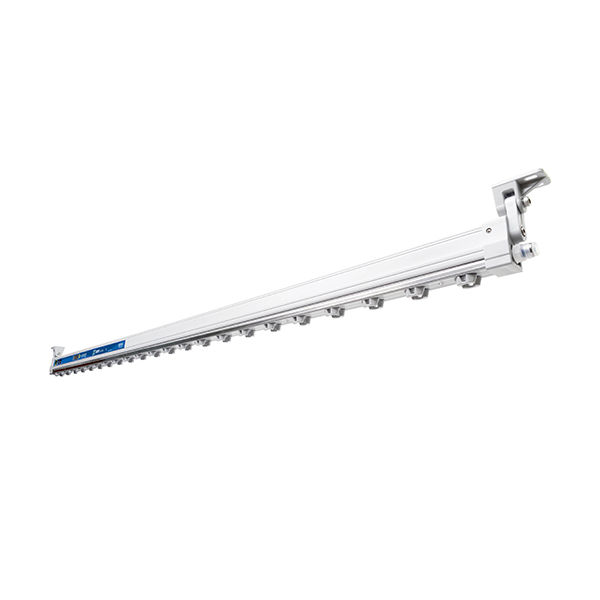

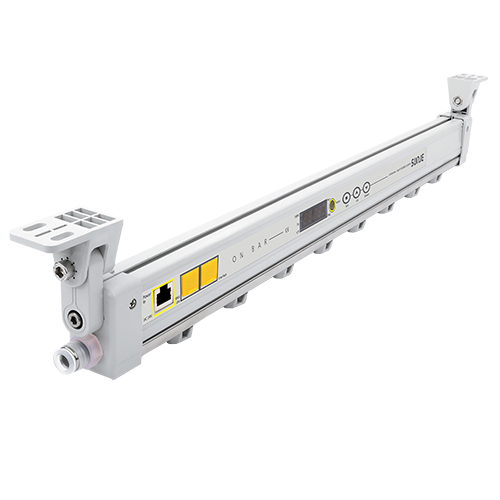

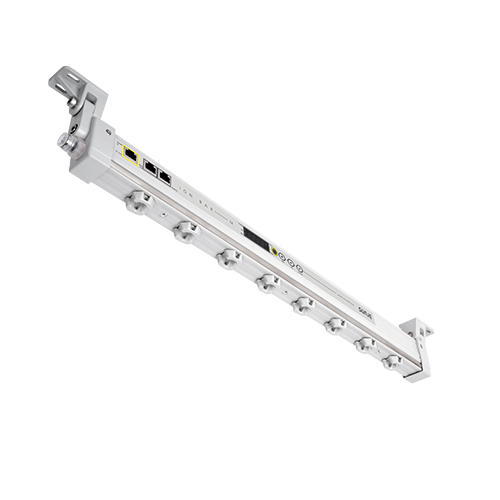

Ion Bar (SIB5S Series)

  • Ion balance : +/- 30
  • Stable ion balance during long term usage
  • Low peak voltage through high frequency
  • Increase ion generation by reducing corona discharge loss
  • Tip cleaning alarm (You can set tip cleaning period with timer)
Product Enquiry


Category Descriptions
Model S1B5S Remark
Input Power DC 24V (±5%)
Power Consumption Max. 12W
Current Consumption Max. 500mA DC 24V
Ion-Generation Method Corona Discharge Pulse AC
Air Purge Supply Pressure 0.1MPa ~ 0.5 MPa CDA (Clean Dry Air), N2
Air Purge Connection Port Pipe Thread 1/8”
Ion Balance within ±30V 1,000mm
Operating Distance 50mm ~ 2,000mm
Operation Circumstance 0°C ~ +50°C (32°F ~ 122°F), 35% ~ 85% RH
Ozone (O3) Concentration ≤0.05ppm
Main Body Material Non-Flammable ABS Level V0
Electrode Material Standard Tungsten
Option Titanium, Poly Silicon
Electrode Replacement Cartridge type
Mounting Method Bolt Mounting with Bracket
Adjust Function Frequency [Hz] 1, 3, 5, 8, 10, 20, 30~100
Duty Ratio [%]
Voltage [Level]  1 ~ 10
Alarm Function High Voltage Abnormal Alarm
Interface Run State, Remote, RS485
Warranty 1 year
