Features
- Ergonomic design
- Particle tracing LED
- Small size & light weight
- Easy connection of tube-fitting (6 mm) to select different air settings
- Strongly built cable (150,000 cable bending test)

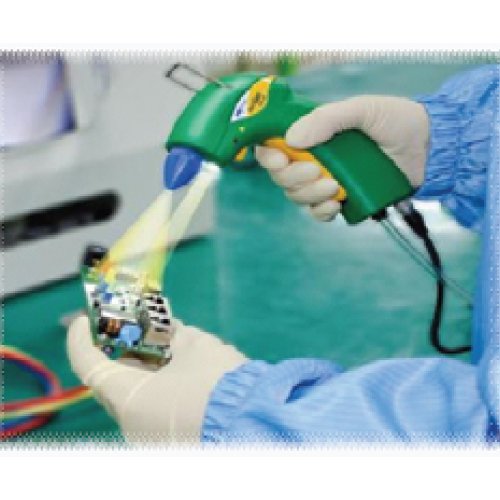

Ionizing Air Gun
Description
Specifications (Air Gun)
| Item Code | M01E-009 | Remark | |
| Model | SIG-30 | ||
| Input Power | DC 24V | ± 5% | |
| Power Consumptions | 1.8W | Lighting LED | |
| Current Consumption | 75 mA | DC 24V | |
| Ion-Generation Method | High Frequency AC | ||
| Air Purge Supply Pressure | 0.1 ~ 0.6MPa (0.4 MPa Recommendation) | CDA (Clean Dry Air), N2 | |
| Operation Circumstance | 5℃ ~ +40℃ (41℉ ~ 104℉, 35% ~ 65%RH) | NO dewing | |
| Ozone (O3) Concentration | ≤ 0.05 ppm | 50 mm | |
| Operation Distance | 50 mm ~ 600 mm | Non-hazardous locations | |

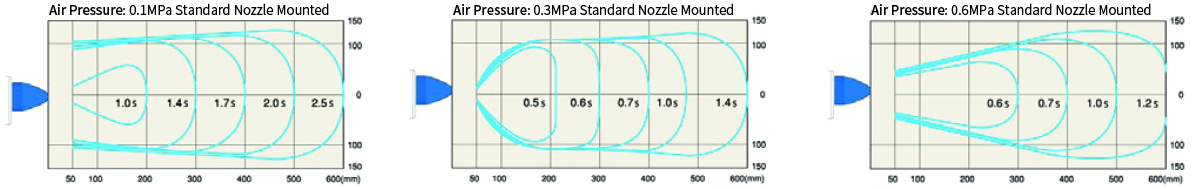

| Decay Time | Please refer to Ionizer performance tables | ||
| Ion Balance | ± 10V | 0.3MPa, 150 mm | |
| Material (Body) | ABS | ||
| Hook Material | Stainless Steel | ||
| Electrode | Standard | Tungsten | |
| Option | Titanium | ||

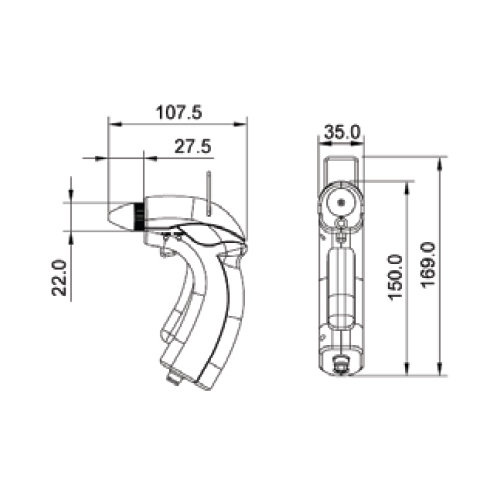

| Size | 107.5(W) × 150(H) × 35(D) mm | ||
| Weight | 198 g | ||
| Alarm Function | H/V Abnormal | Red LED Alarm | |

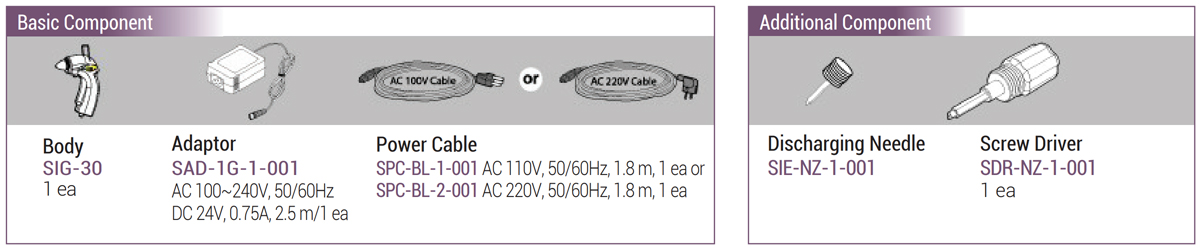

| Accessory | AC Adaptor | ||
| Warranty | 1 year | ||
Specifications (Adaptor)
| Category | Descriptions | Remark | |
| Rated Input Voltage | AC 100V~240V, 50/60Hz, 0.4A | ±5% | |
| Rated Output Voltage | DC 24V 0.75A | ||
| Operation Circumstance | 0℃ ~ +40℃ (32℉ ~ 104℉), 5% ~ 95%RH | Where no condensation | |
| Code Length | DC Input Cable: 2.5 m, AC Output Cable: 1.8m | ||
| Weight | 170 g | ||
