Features
- Ion balance within +/- 50V (at 30cm distance)
- Slim space / mini size
- Easy maintenance
- Tip Socket (SIB1 Series) – 3ea~63ea
- Tip Socket (SIB2 Series) – 3ea~70ea
- 5 mark certified (2006)

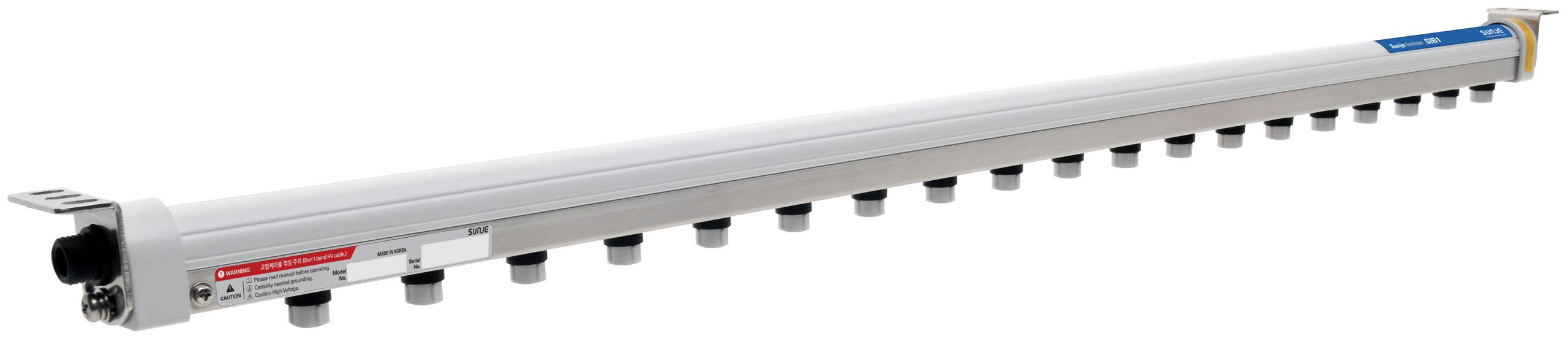

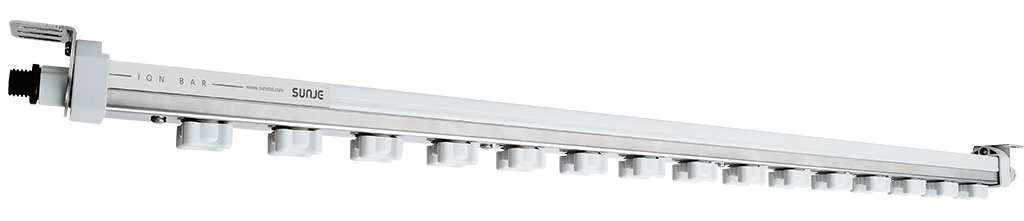

Ion Bar (SIB1/2 Series)
Description
SIB1/2 series
| Category | Descriptions | ||
| Item Code | M07E-025 | ||
| Model | SIB1-80A | ||
| Input Power | – | ||
| Power Consumption | – | ||
| Ion-Generation Method | Corona Discharge Pulse AC | ||
| Air Purge Supply Pressure ** CDA (Clean Dry Air), N2 |
1 ~ 5ikgf/c㎡ (0.5Mpa) | ||
| ≤ 1kg/c㎡ | SIB2-07, SIB2-10, SIB2-16 | ||
| ≤ 3kg/c㎡ | SIB1-16A ~ SIB1-48A | ||
| SIB2-20 ~ SIB2-50 | |||
| ≤ 5kg/c㎡ | SIB1-64A ~ SIB1-256A | ||
| SIB2-60 ~ SIB2-250 | |||
| Air Purge Connection Port | Pipe Tap 1/8” | ||
| Ion Balance | 1000mm | Within ±50V | |
| Ozone (03) Concentration | ≤ 0.005ppm | ||
| Decay Time Characteristics | See the accompanying test document | ||
| Main Body Material | Level V0 | Non-Flammable ABS | |
| Electrode Material | Tungsten, Titanium | ||
| Emitter Replacement | Cartridge type / Pin type | ||
| Operation Circumstance | 0℃ ~ +50℃ (32℉~122℉), 35%~85% RH | ||
| Dimensions | See the accompanying drawing paper | ||
| Mounting Method | – | ||
| Function | – | ||
| Adjust Function | Frequency [Hz] | – | |
| Duty Ratio | |||
| Voltage [Level] | |||
| Mode Set | |||
| Alarm Function | – | ||
| Interface | RJ45 | – | |
| Operating Distance | 50~2,000mm | ||
| Option | – | ||
| High Voltage Cable | Shielding Wire 4m (UL3239_20kV – 1007AWG18) |
||
| Warranty | 1 year | ||
Power Controller
| Category | Descriptions | Remark | |||
| Item Code | M08E-029 | M08E-028 | M08E-018 | ||

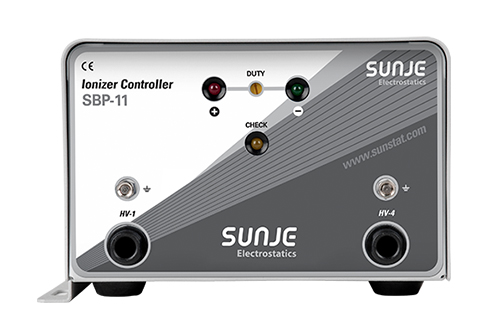

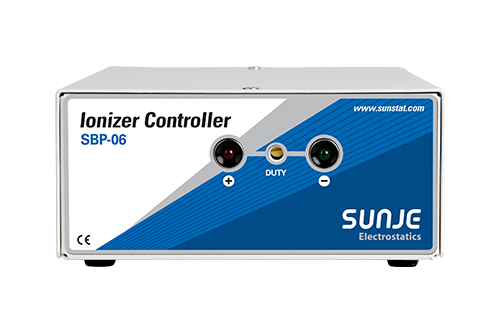

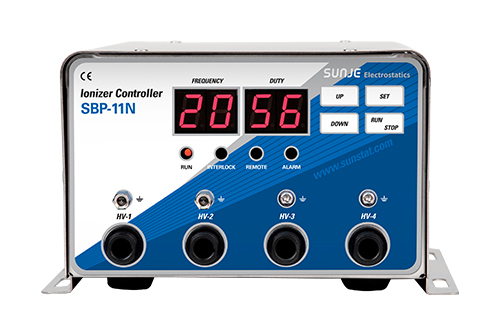

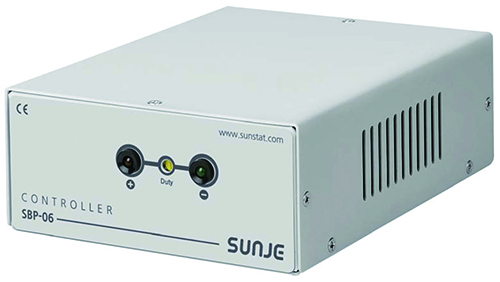

| Model | SBP-11N | SBP-11 | SBP-06 | ||
| Appearance |  |
 |
 |
||
| Input Power | AC100~240V, 50/60Hz | ||||
| Power Consumption | 23W | 22W | 16W | ||
| Alarm | H/V Abnormal | N/A | UTP | ||
| (SBP-11N) | |||||
| Weight | 2.48Kg | 2.46Kg | 1.42Kg | ||
| Main Body Material | SUS304 | EGI | EGI | ||
| Power Cable | 1.8m | ||||
| Ion Bar Number Connectable | 4set (Max) | 1set | |||
| Function | Adjust Frequency [Hz] | 1, 3, 5, 8, 10, 20, 30 | – | – | |
| Adjust Duty Ratio [%] | 40 ~ 60 (100 unit) | 40 ~ 60 | |||
| Warranty | 1 Year | ||||
