Bench Top Ion Blower (Mini)

Features
  • By using of AC 50kHz high frequency corona discharge method, this Ionizer is especially effective in neutralizing static electricity at short-range and in maintaining steadfast balance of plus(+) and minus(-) ions.
  • Miniature design allows you to install it in the confined space of equipment for LCD, semiconductor, etc., and this compact ionizer can neutralize static electricity from the objects effectively without using compressed air flow.
  • A magnetic attached device enables you to install it at any metallic surfaces easily, and unique brackets allow you to bend the head part vertically, elevate up and down, and rotate the face in any desired directions.
  • In case of excess high voltage and the abnormality of fan operating, LED light will be on as “RED”
  • Easy maintenance thanks to a removable emitter pin unit.
Product Enquiry

Description

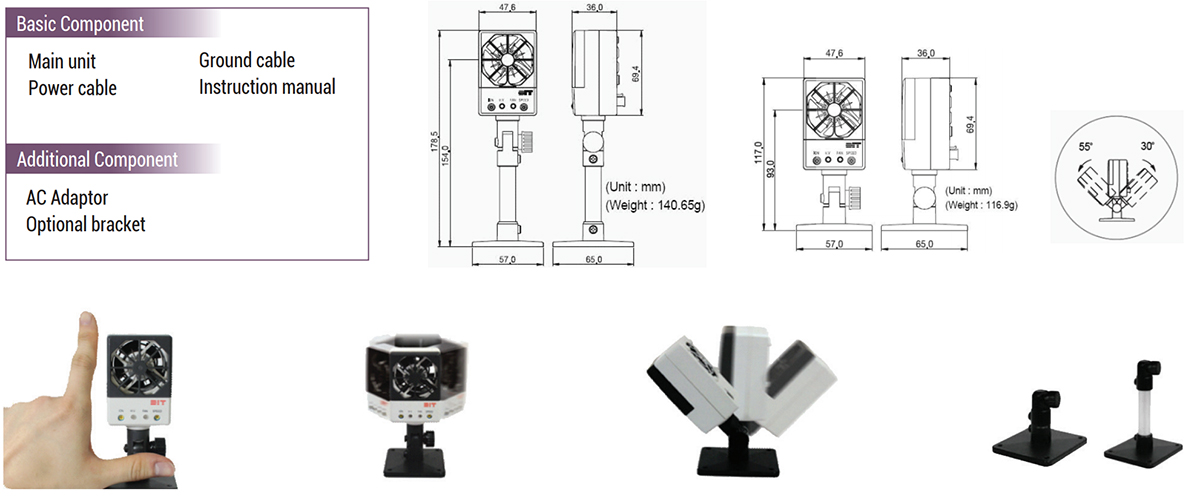

SF-40A

Item Code M02E-025 Remark
Model SF-40A
Ion Balance ± 10V
Ion-Generation Method High frequency AC
Electrode Titanium
Decay Time 1.5 sec. 150 mm
Input Current DC 24V, 0.15A
Air Flow 0.27 m /min (Max)
Adjustable Controls Fan speed, Ion Balance
Size (mm) 46(W) × 68.5(H) × 36(D) Head
Operation Circumstance 0℃ ~ 50℃, 35% ~ 65%RH
Ozone (O3) Concentration ≤ 0.05 ppm







SBL-18, SBL-108

  • Ion balance: ± 10V (SBL-108), ± 30V (SBL-18) (at 60 cm distance)
  • EMI (Electro-Magnetic Interference) and EMS (Electro-Magnetic Susceptibility)
  • Various interfaces with automated factories (PLC, Computer)
  • RMS (SBL-108, Option)
  • Various input voltages (AC110/220, 50/60Hz, DC24V)

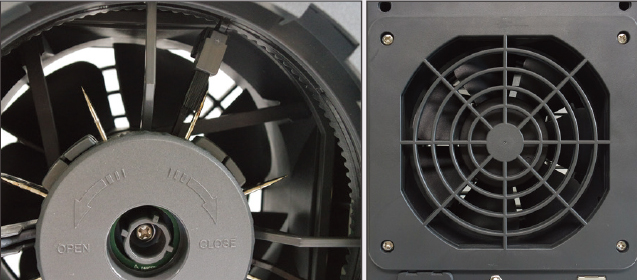

  • One touch front fan cover off for tip cleaning

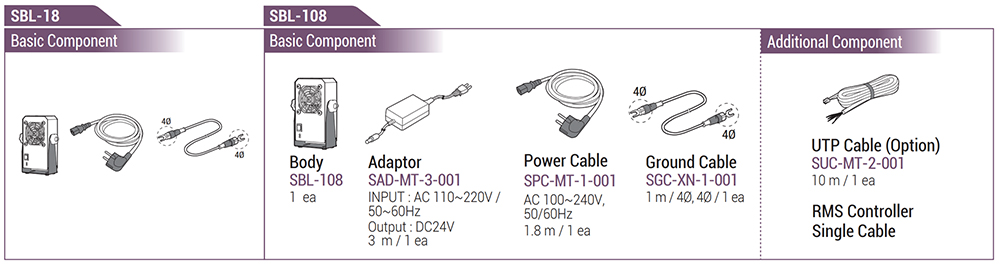

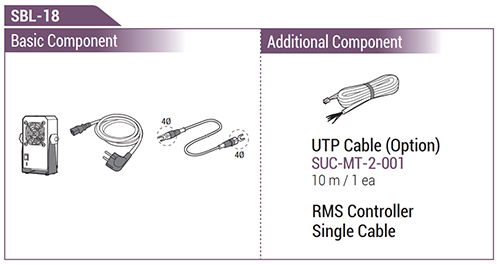

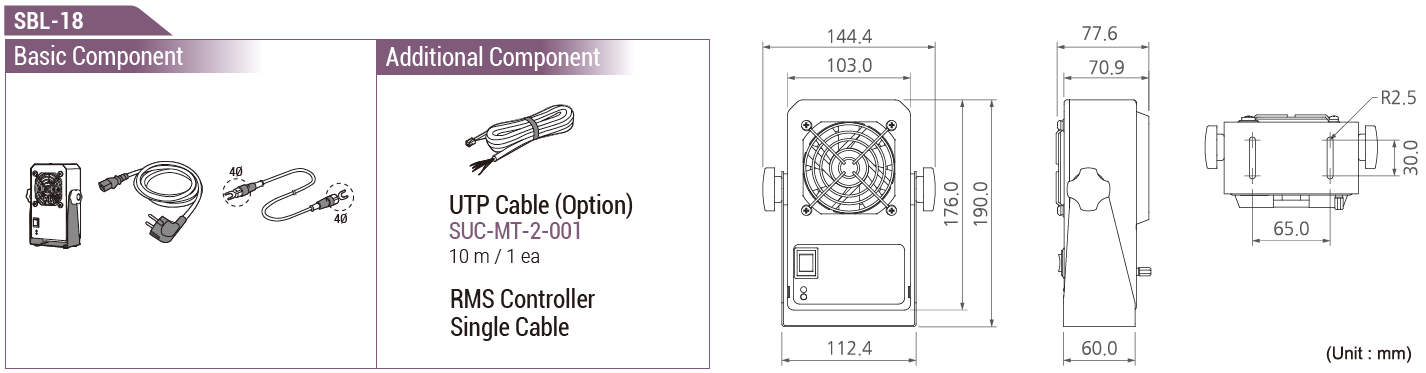

Item Code M02E-004 M02E-005

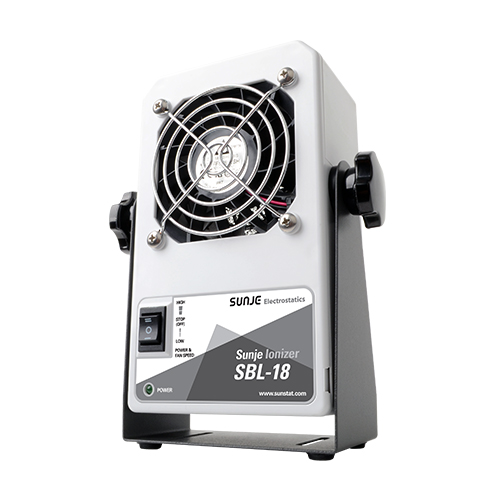

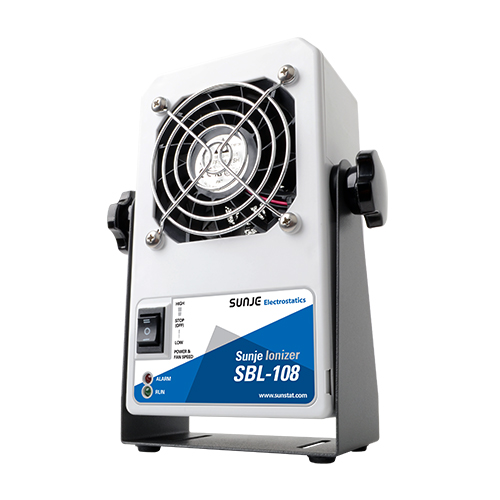

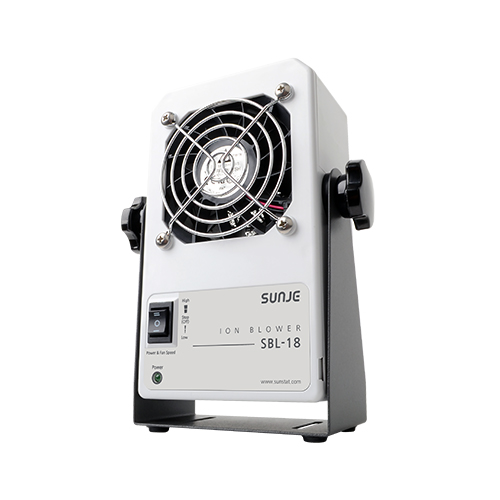

Model SBL-18 SBL-108
Input Power AC110/220V, 50/60Hz Adapter (AC110-220V, 50/60Hz, DC24V)
Power Consumptions 18W 22W
Ion-Generation Method DC Type Steady-State DC
Air Bow Volume 1.9 ㎥/min
Noise Level (dB) 54 dB
Ion Balance ± 30V (in 600 mm) ± 10V (in 600 mm)
Ozone (O3) Concentration ≤ 0.005 ppm
Operation Circumstance 0°C ~+50°C (32oF ~ 122°F), 35% ~ 85% RH
Weight 0.8 kg
Material (Body) EGI
Electrode Tungsten
Mounting Method Desk Top
Function 2 Steps Fan Seed
Alarm Function Ion Unbalance Alarm
Interface Remote On/Off, Run State, RS485, Power input
Option RMS (Real Monitoring System)
Warranty 1 year
