Features

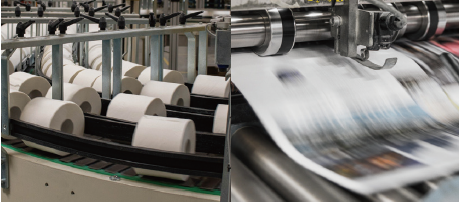

- Used in manufacturing processes that require high-speed static elimination of films, fibers, and paper
- Prevents the risk of operator shock from static electricity
- Designed to be able to easy clean and replace an emitter pin
Item Code | M07E-545~568 | |
Model | ASR-D Series | |
Input Power | DC 24V ± 10% | |
Input Current | Max. 300 mA | |
Power Consumption | Max. 8W | |
Emitter Voltage | DC ±7.0kV(emitter pin pitch 35 mm), DC ±12kV(emitter pin pitch 60 mm) |
|
Ion Generating Method | Corona Discharge | |
Voltage Application Method | DC | |
Material | Body: AL, ABS / Emitter pins: Tungsten | |
Emitter replacement | Replaceable | |
Coverage Distance | 50~200 mm (7kV), 150~500 mm (12kV) | |
Air | Type | CDA (Clean dry air), N2 |
Pressure | 0.05~0.5 MPa (Usually under 0.3 MPa) | |
Air Tube Diameter | ø6 (Outside) | |
Ambient Temperature | 0 °C ~ +40°C (32~104°F) | |
Ambient Humidity | 35 ~ 85% RH (No condensation) |

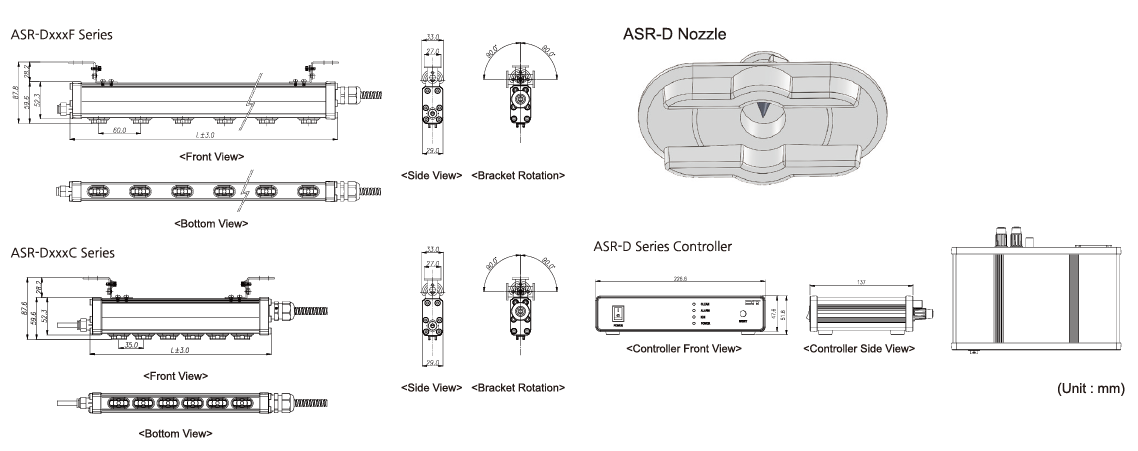

tem Code | Length (mm) | Remark |
M07E-545 | 380 | P=60 mm |
M07E-546 | 500 | |
M07E-547 | 620 | |
M07E-548 | 740 | |
M07E-549 | 860 | |
M07E-550 | 980 | |
M07E-551 | 1100 | |
M07E-552 | 1220 | |
M07E-553 | 1340 | |
M07E-554 | 1460 | |
M07E-555 | 1700 | |
M07E-556 | 2060 | |
M07E-557 | 2540 | |
M07E-558 | 3020 | |
M07E-559 | 250 | P=35 mm |
M07E-560 | 320 | |
M07E-561 | 390 | |
M07E-562 | 530 | |
M07E-563 | 600 | |
M07E-564 | 740 | |
M07E-565 | 880 | |
M07E-566 | 1020 | |
M07E-567 | 1300 | |
M07E-568 | 1510 |
