Humidity Indicator Card (HIC)

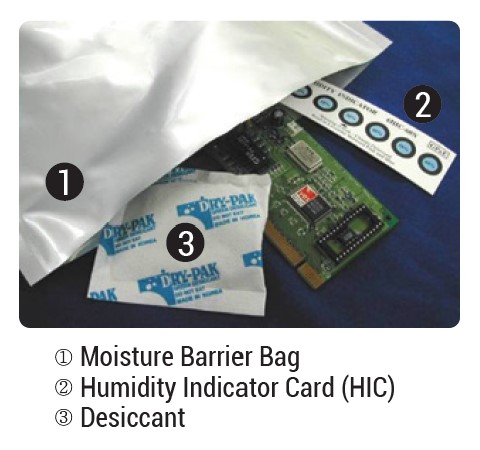

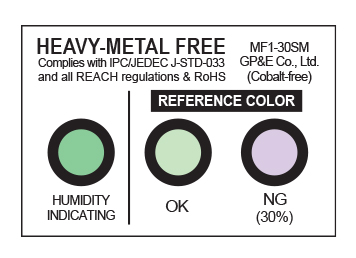

HIC allows fast visual inspection of the Relative Humidity(RH) in sealed packaging and containers. As the humidity increases, the chemically impregnated spots will be changed traditionally from blue through lavender to pink (Cobalt-HIC), blue to pink (CDF-HIC), brown to green (CB-HIC), yellow to green (CF-HIC) and green to violet (MF1-HIC). Our HICs have 3 spots or 6spots, but we also have a one spot type. It contains 3 spots, but only one spot is chemically impregnated and other two spots are just printed with reference colors for “OK” and “NG” (not good) so that user can easily check if it is failed or passed according to acceptable preset limit (ex. Semiconductor -10% RH, PCB/LED – 30% RH, etc.) in each industry.

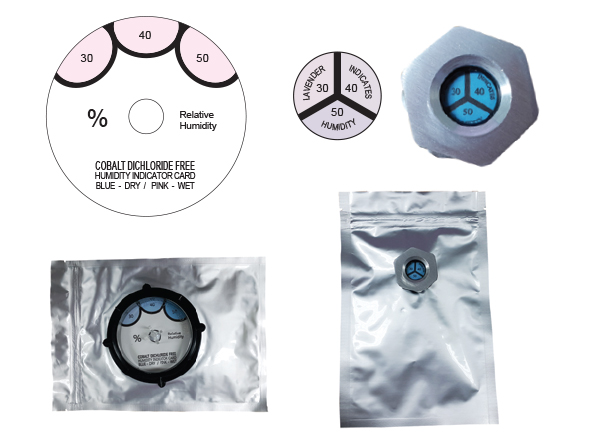

We also have a plug type in round shape different from most other square designs in the market. Especially, if we use it with a specially designed plug case, it will be easy and effective to check the humidity conditions inside of the bags without opening if we use it with a specially designed plug case.

Most recently, we have developed a twin type, which is another innovative and unique concept, to absorb price-oriented customers. As you can cut each HIC into two by simply folding the card a couple of times and tearing it along pre-cut dot lines.



Features
  • Eco-friendly products
  • Various types and designs (custom sizes and designs are also available on request)
  • Meet MIL-I-8835A&IPC/JEDEC J-STD-033B.1
  • Indication of warning point (option)
Product Enquiry

Description

Standard type (3 spots, 6 spots)

Cobalt HIC

Descriptions Cobalt-HIC
Item Code M14P-012 6 Spots (10%, 20%, 30%, 50%, 60%)
M14P-013 3 Spots (10%, 20%, 30%)
M14P-014 3 Spots (30%, 40%, 50%)
M14P-015 3 Spots (5%, 10%, 60%)
Color Change Blue-Pink
Size 3 spots 50 × 75mm
17 × 51mm
33 × 59mm
6 spots 40 × 119mm
40 × 116mm
34 × 116mm
Indications 3 spots 5-10-15%
30-40-50%
5-10-60%
6 spots 10~60%
Packing 3 spots 125pc/tin or
AMBB, 40tins or
AMBBs/carton
6 spots 200pc/tin or
AMBB, 20tins or
AMBBs/carton

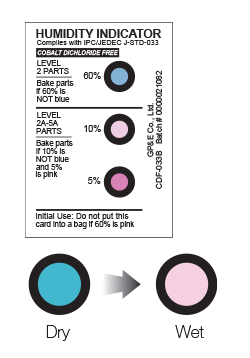

CDF (Cobalt Dichloride Free) – HIC
  • CDF-HIC is ECO friendly and free from 6 kinds (Cd, Hg, Pb, Cr6 , PBBs and PBDEs).
    The color change is from Blue (dry) to Pink (wet) and this CDF-HIC meets JEDEC standards of IPC/JEDEC J-STD-033B.1.

Descriptions CDF-HIC
Item Code M14P-001 3 Spot
M14P-002 6 Spot
Color Change Blue-Pink
Cobalt Dichloride Free (CDF)
Cobalt Free (CF)
Heavy Metal Free (HMF)
Size 3 spots 50 × 75mm
17 × 51mm
33 × 59mm
6 spots 40 × 119mm
40 × 116mm
34 × 116mm
Indications 3 spots 5-10-15%
30-40-50%
5-10-60%
6 spots 10~60%
Packing 3 spots 125pc/tin or
AMBB, 40tins or
AMBBs/carton
6 spots 200pc/tin or
AMBB, 20tins or
AMBBs/carton

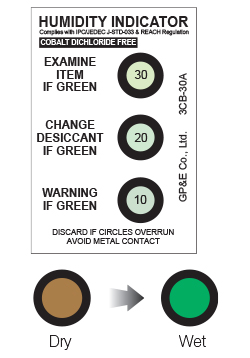

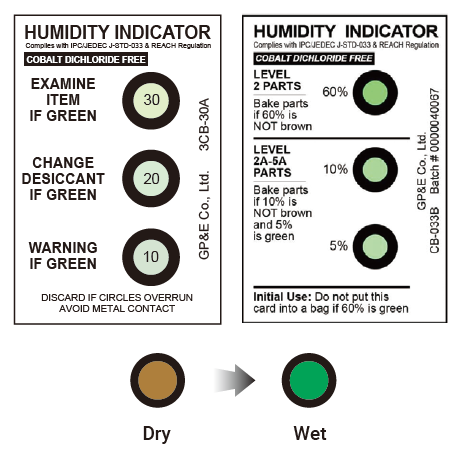

CB-HIC

Descriptions CB-HIC
Item Code M14P-007 3 Spot
M14P-008 6 Spot
Color Change Brown-Green
Cobalt Dichloride Free (CDF)
Cobalt Free (CF)
Heavy Metal Free (HMF)
Size 3 spots 50 × 75mm
17 × 51mm
33 × 59mm
6 spots 40 × 119mm
40 × 116mm
34 × 116mm
Indications 3 spots 5-10-15%
30-40-50%
5-10-60%
6 spots 10~60%
Packing 3    spots 125pc/tin or
AMBB, 40tins or
AMBBs/carton
6 spots 200pc/tin or
AMBB, 20tins or
AMBBs/carton

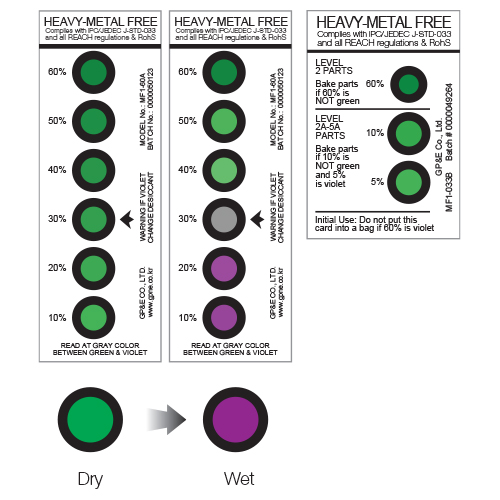

Metal Free (MF) HIC
  • MF HIC is non-toxic, non-hazardous and environmentally friendly. Color change from green (dry) to violet (wet).

Descriptions MF1-HIC
Item Code M14-P-005 3 Spot
M14-P-006 6 Spot
Color Change Green-Violet
Cobalt Dichloride Free (CDF)
Cobalt Free (CF)
Heavy Metal Free (HMF)
Size 3 spots 50 × 75mm
17 × 51mm
33 × 59mm
6 spots 40 × 119mm
40 × 116mm
34 × 116mm
Indications 3 spots 5-10-15%
30-40-50%
5-10-60%
6 spots 10~60%
Packing 3 spots 125pc/tin or
AMBB, 40tins or
AMBBs/carton
6 spots 200pc/tin or
AMBB, 20tins or
AMBBs/carton

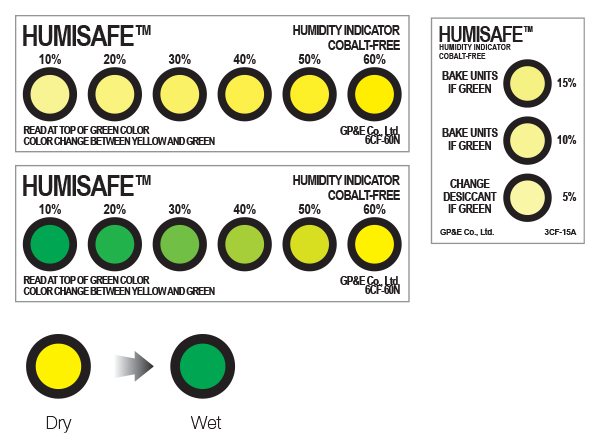

Cobalt Free (CF) HIC
  • CF HIC is heavy metal free (6-RoHS, Cobalt, Copper, etc.) and non-toxic, non-hazardous and environmentally friendly. Color change from yellow (dry) to green (wet).

Descriptions CF-HIC
Item Code M14-P-003 3 Spot
M14-P-004 6 Spot
Color Change Yellow-Green
Cobalt Dichloride Free (CDF)
Cobalt Free (CF)
Heavy Metal Free (HMF)
Size 3 spots 50 × 75mm
17 × 51mm
33 × 59mm
6 spots 40 × 119mm
40 × 116mm
34 × 116mm
Indications 3 spots 5-10-15%
30-40-50%
5-10-60%
6 spots 10~60%
Packing 3 spots 125pc/tin or
AMBB, 40tins or
AMBBs/carton
6 spots 200pc/tin or
AMBB, 20tins or
AMBBs/carton





Round type



Twin type

One spot type
