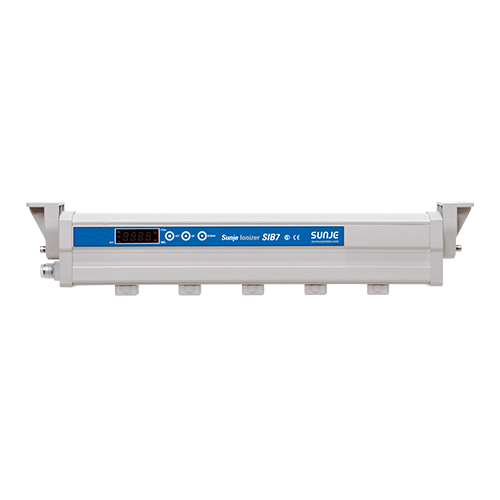

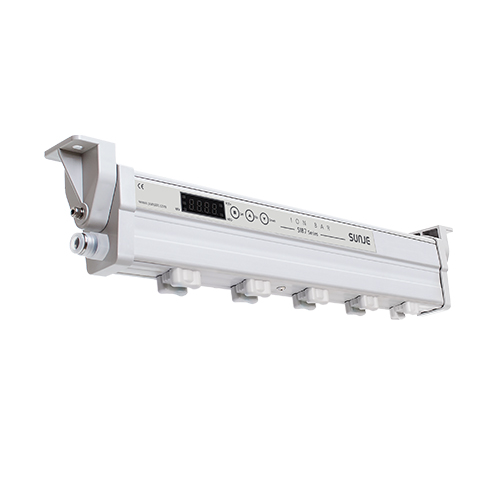

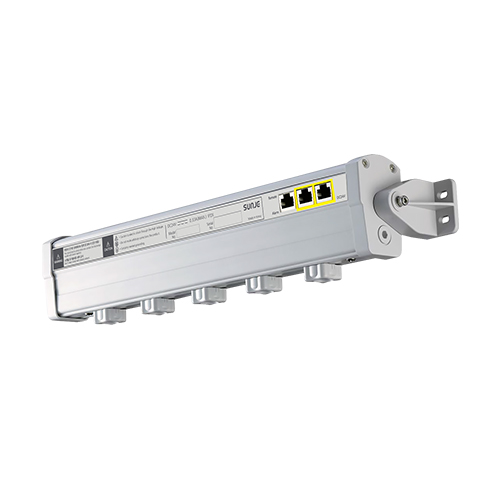

Ion Bar (SIB7 Series)

SIB7 Series is a all-in-one type mini size ion bar. Corona discharge loss is minimized through various specification and digital control system and this product provides high performance and low ion balance. Also, wide range of ionization is possible through an optimum ion generating design.

Features
  • Ion balance: ± 30V (in 1,000 mm)
  • All-in-one type mini size ion bar (eg. controller internally installed)
  • Maximized the ion creation via reducing loss of corona discharging
  • Power jumping function among ion bars (Max. 4 ion bar links)
  • Aero dynamic design nozzle socket reduces tip contamination
  • One-touch in/out socket application
  • Design for minimum air consumption

Product Enquiry
Categories: ,

Description

Item Code M07E-085 Remark
Model SIB7 Series
Input Power DC 24V (± 5%)
Power Consumption Max. 7.8W
Current Consumption Max. 325 mA DC 24V
Ion-Generation Method Corona Discharge Pulse AC
Air Purge Supply Pressure 0.1MPa ~ 0.5 MPa CDA (Clean Dry Air), N2
Air Purge Connection Port Pipe Thread 1/8”
Ion Balance ± 30V 1,000 mm
Operating Distance 50 mm ~ 2,000 mm
Operation Circumstance 0°C ~ +50°C (32°F ~ 122°F), 35% ~ 85% RH
Ozone (O3) Concentration ≤ 0.05 ppm
Material (Body)  Non-Flammable ABS Level V0
Electrode Standard Tungsten
Option Titanium, Poly Silicon
Emitter Replacement Cartridge type
Mounting Method Bolt Mounting with Bracket
Ion Bar Length 422 mm ~ 962 mm
Adjust Function Frequency (Hz) 0.1, 0.3, 1, 3, 5, 8, 10, 20, 30, 50
Duty Ratio (%) 40 ~ 70
Voltage Level 1 ~ 10
Alarm Function High Voltage Abnormal Alarm
Interface Input: Remote / Output: Run State, Alarm State
Warranty 1 year
