KORENG

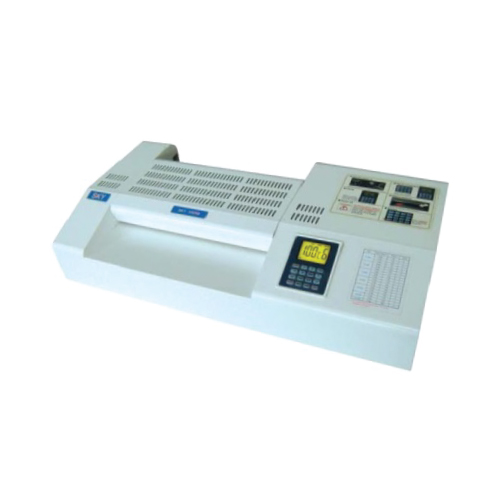

Laminating Machine

Features
  • Strong roller system : 6 heating rollers + 2 cooling rollers
  • Strong motor system : Special DC motor for 5,000hours at maximum of long life
  • Maximum 330mm width and 350um thickness is able to laminate
  • Can laminate up to 4m per minute
  • Actual working time check function
Product Enquiry

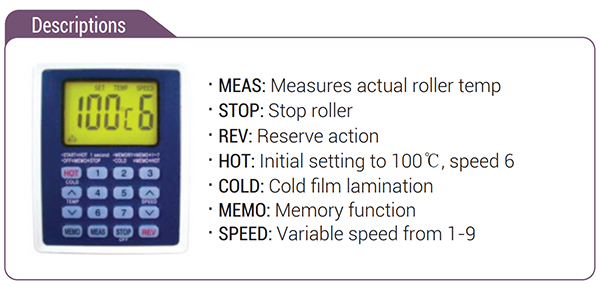

Description

Descriptions
Item Code M70E-001 M70E-002
Model SKY325 R6 SKY330 R8
Max. Laminating Width 330mm (13”)
Max. Laminating Speed 1,400mm/min 4,000mm/min
Max. Pouch Thickness 350MIC (14 MIL)
Max. Laminating Thickness 3mm
Heating System Heating roller internal heater
Q’ty of Roller 6 10
Carrier Free
Temperature Control Yes
Speed Control Yes
Reverse Switch Yes
Preheating Time 5 min. 6 min.
Power Supply AC 100, 110, 120, 220, 230, 240V (50/60Hz)
Power Consumption 1,050watts 1,300watts
Dimension 545 × 250 × 125mm 653 × 350 × 146 mm
Weight 15kgs 29kgs
Operation Temperature 0 – 140 0 – 160
