Features
- Remove static from creating ionic circumstance
- With various products’ length, suitable installation for any space
- Real Monitoring System (RMS) – Option

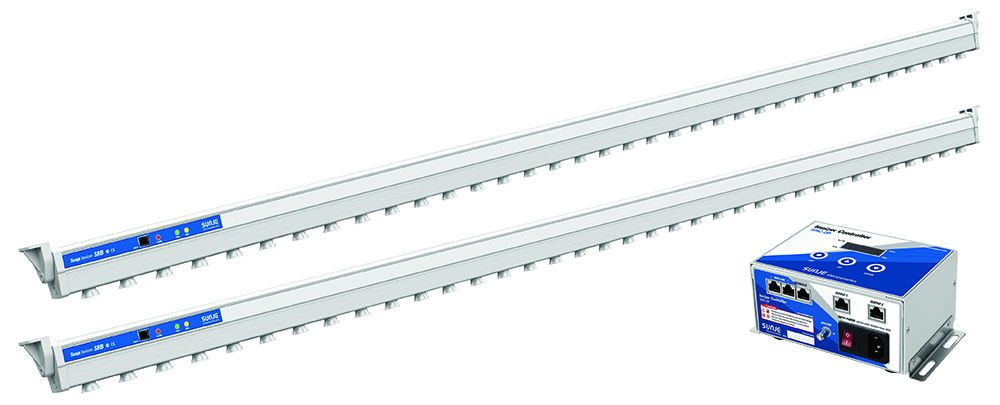

Ion Bar (SRB Series – Room ionizer)
Description
| Category | Descriptions | ||
| Model | SRB Series / SRC-2P | ||
| Input Power | AC100~240V, 50/60Hz | ||
| Power Consumption | Max. 15W | ||
| Current Consumption | Max. 68mA, AC 220V | ||
| Ion-Generation Method | Corona Discharge Pulse AC | ||
| Main Body Material (Level V0) | SRB Series | Non-Flammable ABS | |
| SRC-2P | EGI | ||
| Electrode Material | Tungsten | ||
| Emitter Replacement | Cartridge type | ||
| Operation Circumstance | 0℃ ~ 50℃ (32℉ ~ 122℉), 35% ~ 85% RH | ||

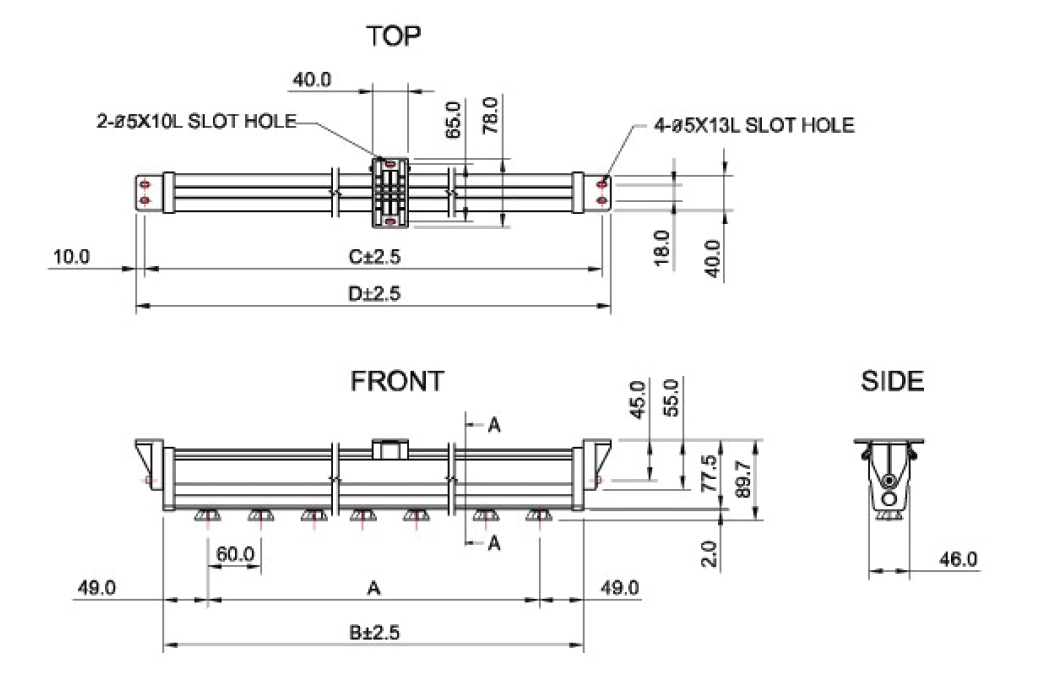

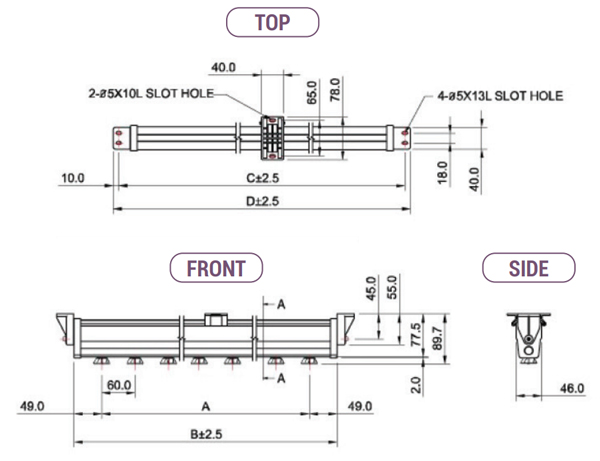

| Dimensions | SRB Series | See the accompanying drawing paper | |
| SRC-2P (with Bracket) | 190.0(W) × 81.0(H) × 122.5(D) [mm] | ||
| Function | Remote Control | ||
| Adjust | Period [Sec] | Positive 1 ~ 10 Sec. / Negative 1 ~ 10 Sec. | |
| Function | |||
| Voltage [kV] | Positive 4 ~ 11 KV / Negative 4 ~ 11 KV | ||
| Alarm Function | H/V abnormal | ||
| Interface (RJ45) | Run, Stop, RS-485, Alarm (H/V Abnormal) | ||
| Warranty | 1 year | ||

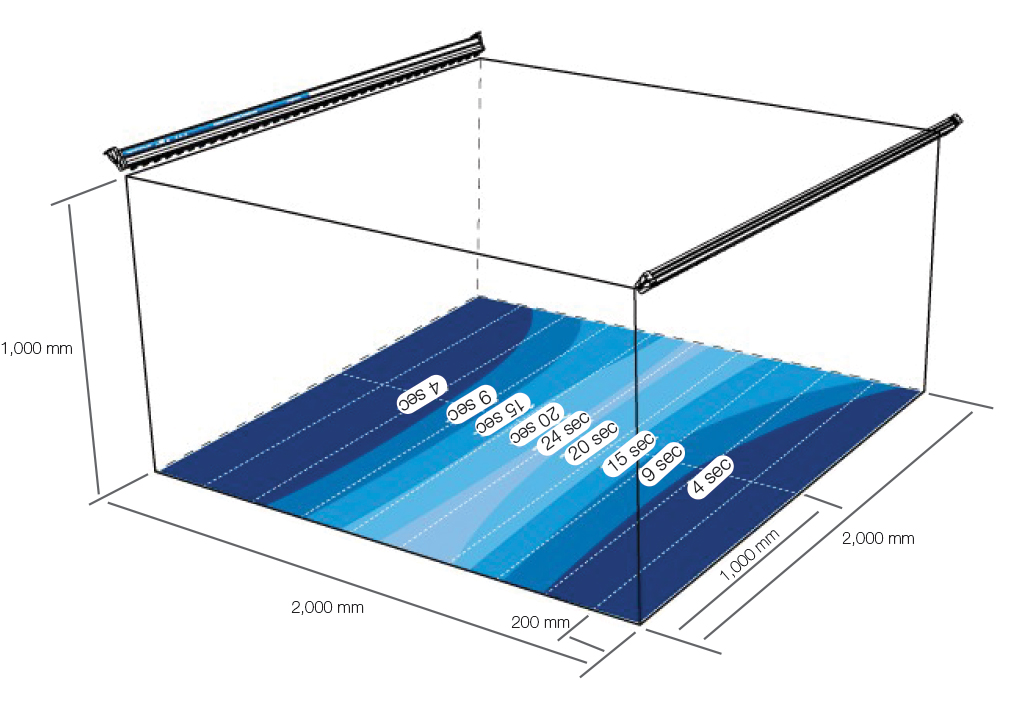

Decay Time Characteristics |
|
 |
|
Test Conditions |
|
 |
|
| Model | SRB-2100 |
| Output Time | Positive(+) 1sec., Negative(-) 1sec. |
| Output Voltage | Positive(+) 11kV, Negative(-) 7.5kV |
| Decay Time | ±1,000V to ±100V |
| Charge Plate Capacitance | 20pF (150 × 150 mm), Trek 156A1 |
 |
||||||

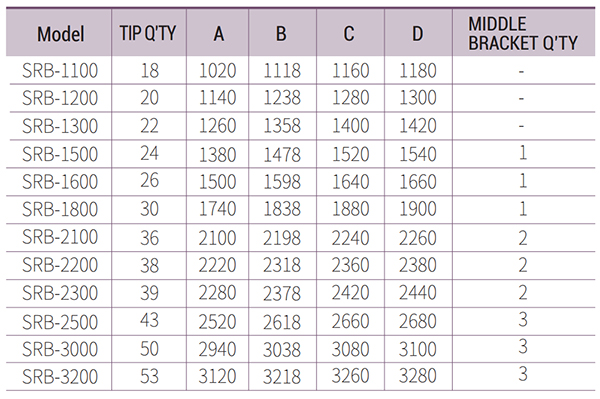

| Model | TIP Q’TV | A | B | C | D | MIDDLE BRACKET Q’TY |
| SRB-1100 | 18 | 1020 | 1118 | 1160 | 1180 | – |
| SRB-1200 | 20 | 1140 | 1238 | 1280 | 1300 | – |
| SRB-1300 | 22 | 1260 | 1358 | 1400 | 1420 | – |
| SRB-1500 | 24 | 1380 | 1478 | 1520 | 1540 | 1 |
| SRB-1600 | 26 | 1500 | 1598 | 1640 | 1660 | 1 |
| SRB-1800 | 30 | 1740 | 1838 | 1880 | 1900 | 1 |
| SRB-2100 | 36 | 2100 | 2198 | 2240 | 2260 | 2 |
| SRB-2200 | 38 | 2220 | 2318 | 2360 | 2380 | 2 |
| SRB-2300 | 39 | 2280 | 2378 | 2420 | 2440 | 2 |
| SRB-2500 | 43 | 2520 | 2618 | 2660 | 2680 | 3 |
| SRB-3000 | 50 | 2940 | 3038 | 3080 | 3100 | 3 |
| SRB-3200 | 53 | 3120 | 3218 | 3260 | 3280 | 3 |
