| Item Code | M10C-000 |

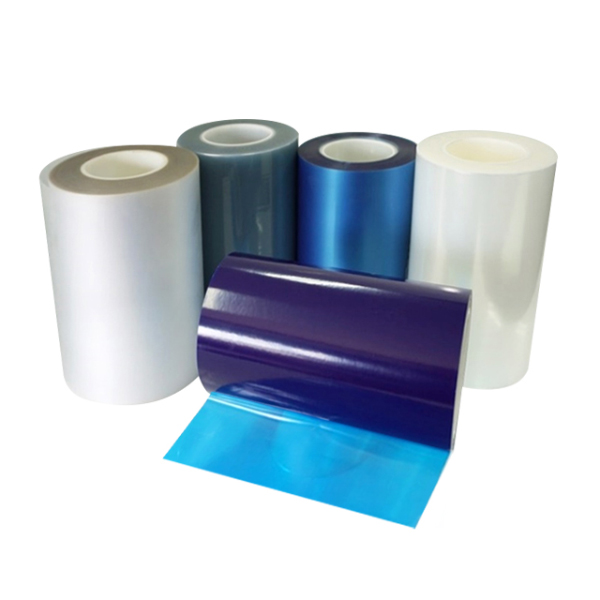

Protection Film are widely used in various objects that need surface protection from outer impact, contaminations, scratches, etc. They are used on stainless steel, AL sheet, acrylic sheet, powder coated steel, wooden flooring, PVC sheet and many others. There are a number of variations in Protection Film, so it is always recommended to contact mecind@mecind.co.kr or person you know for more information.
| Surface Protection Film | ||||
| Material | Polyethylene | |||
| Adhesive | Acrylic | |||
| Thickness (um) | 40-150 | |||
| Adhesive (g/25mm) | 30, 100, 200, 300, 400, 500, 600, 700 | |||
| Width (mm) | 100-1800 | |||
| Length (m) | 100-2000 | |||
| Elongation (%) | over 250 | |||
| Application | PVC & Aluminum & ABS Panel, Melanin board, SUS Panel, Fabric Sheet | |||
| PE Protection Film | ||||
| Material | Polyethylene | |||
| Adhesive | Acrylic | |||
| Thickness (um) | 50, 60, 70, 80, 100, 150 | |||
| Adhesive (g/25mm) | 10, 30, 50, 100, 300 | |||
| Width (mm) | 100-1800 | |||
| Length (m) | 100-2000 | |||
| Application | Back Light, Touch Screen, LCD/PD Panel, Optical, FIlm&Resin Plate | |||
| PE Protection Film (Silicone Adhesive) | ||||
| Material | Polyethylene | |||
| Adhesive | Silicone | |||
| Thickness (um) | 50-250 | |||
| Adhesive (g/25mm) | 1-3 | |||
| Width (mm) | 100-1800 | |||
| Length (m) | 100-2000 | |||
| Application | Glass, Plastics, Touch Screen, Optical Film | |||
| PE Protection Film (Urethane Adhesive) | ||||
| Material | Polyethylene | |||
| Adhesive | Urethane | |||
| Thickness (um) | 50, 60, 80, 150 | |||
| Adhesive (g/25mm) | 10-30 | |||
| Width (mm) | 100-1800 | |||
| Length (m) | 100-2000 | |||
| Application | Back Light Unit, LCD, PC, PMMA, Glass, Diffusion Film, Polarizing Film | |||
| PET Release Liner | ||||
| Material | Clear PET | |||
| Adhesive | Silicone | |||
| Features | One-sided/Double-sided coating | |||
| Thickness (um) | 22-188 | |||
| Peel Strength (mm) | 1-180 | |||
| Re-Adhesive Value (%) | 80-97 | |||
| EVA Protection Tape | ||||
| Thickness (um) | 50 | |||
| Tensile Strength (kg/cm2) | 300-350 | |||
| Elongation (%) | 450-600 | |||
| Tear Strength (kg/cm) | 110, 120, 130 | |||
| Adhesive (g/25mm) | 30°C – 15, 20, 30, 40 | |||
| 80°C – 30, 40, 50 | ||||
| 120°C – 35, 45, 60 | ||||
| Application | PC, PMMA, PET, PVC, ABS, Glossy surface steel, Plastic thermal forming | |||
Available Width: 1,600 mm
Available Length: 200 m~3,000 m
