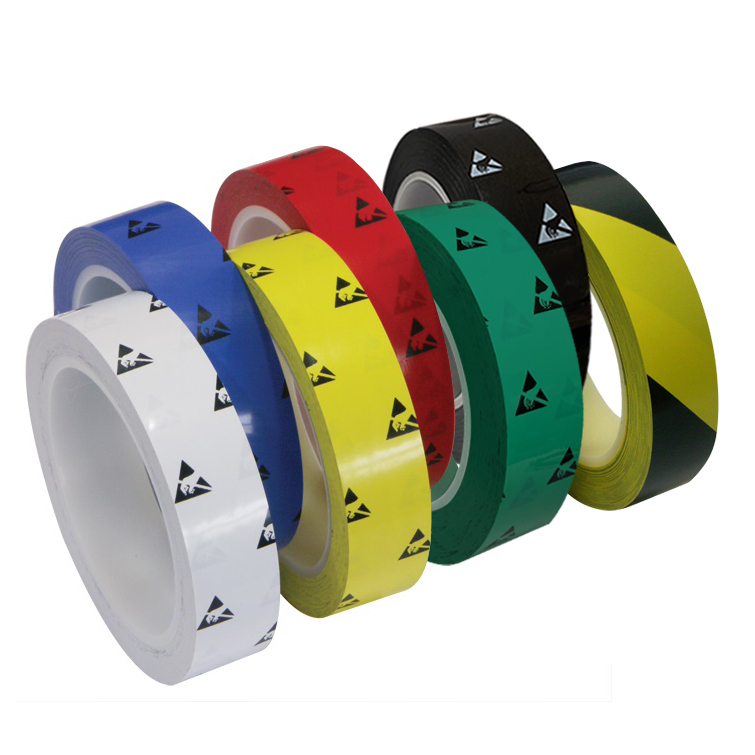

ESD Marking Tape with Printings

PET laminated PVC tape with printings and antistatic treatment on both sides



  • Antistatic treatment
  • PET (15㎛)
  • ESD logo printed PVC (100㎛)
  • Antistatic treatment
  • Antistatic acrylic adhesive (30㎛)
Product Enquiry
Categories: ,


Item Code M04T-000
Model PT-CMP
Color Green, Blue, Red, Yellow, White, Green, Black&Yellow
Surface Resistance 10e7~10e9 ohm
Thickness 145㎛
Size 1/2″, 1″, 3/4″, 2″, 4″ × 33m/roll, 1,000mm × 33m (Jumbo roll)
Packing 25mm × 33m / 60rolls, 50mm × 33m / 30rolls


Marking Tapes

Marking Tapes have mainly 3 different kinds, which are ESD Marking Tape, ESD Marking Tape with Printings and ESD Floor Marking Tape. All of them have ESD properties on both adhesive and back sides. They barely generate very low particles by adopting plastic core and lint free film.

  • Indication of “ESD Protected Area”, “ESD Controlled Area”, “ESD Safe Area”
  • Color coding
  • Safety Markings
