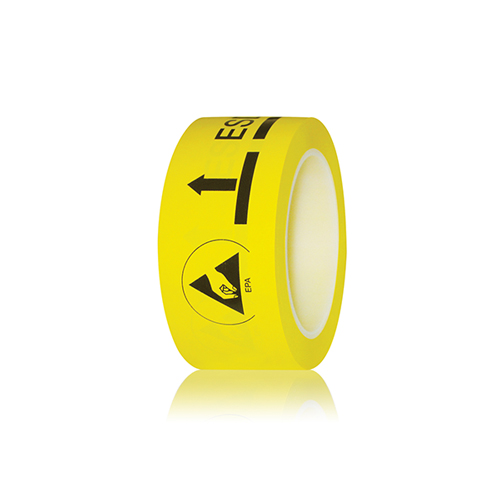

PET laminated PVC printed tape with ESD Symbol and “ESD Protected Area”
Constructions
- Antistatic treatment
- PET Film (15㎛)
- Printed PVC Film
(ESD symblo and “ESD Protected Area”) (100㎛) - Antistatic treatment
- Antistatic acrylic adhesive (30㎛)
PET laminated PVC printed tape with ESD Symbol and “ESD Protected Area”
Item Code | M05T-000 |
Model | PT-EMT |
Color | Black printing on yellow |
Surface Resistance | 10e7 ~ 10e9 ohm |
Thickness | 145㎛ |
Size | 50mm × 33m / roll |
Packing | 50mm × 33m / 30rolls |
Marking Tapes have mainly 3 different kinds, which are ESD Marking Tape, ESD Marking Tape with Printings and ESD Floor Marking Tape. All of them have ESD properties on both adhesive and back sides. They barely generate very low particles by adopting plastic core and lint free film.
