Description

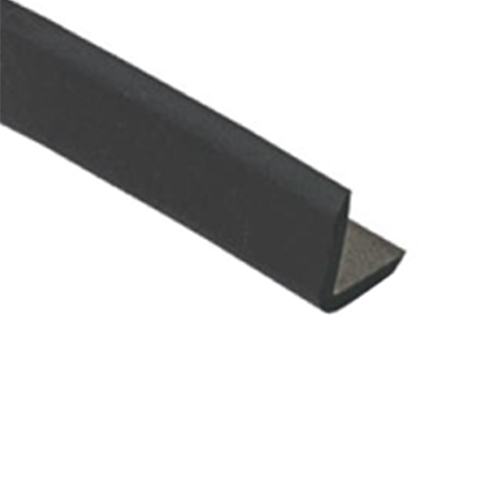

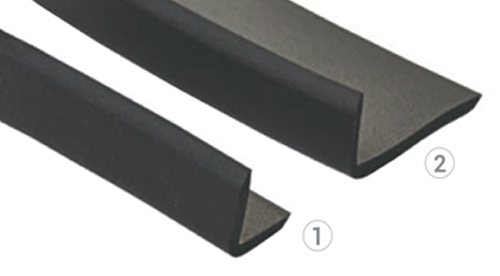

ESD Edge Protector for Tables

Item Code Size Material SR (ohm) Hardness Heat Resistance
① M37M-001-BK 15 mm × 15 mm × 100 m Foam Rubber (EPDM) 10e8 ~ 10e9 40 100℃
② M37M-002-BK 15 mm × 38 mm × 50 m



Application : edge protection for tables

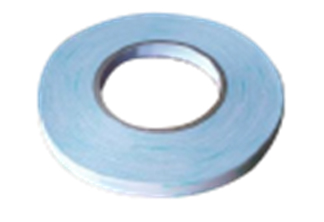

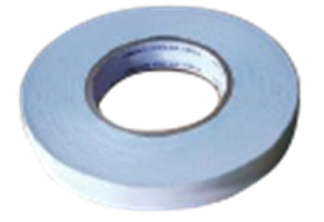

Antistatic Double Sides Tape
 Option
1) Size: 20 mm × 50 m 2) Size: 10 mm × 50 m

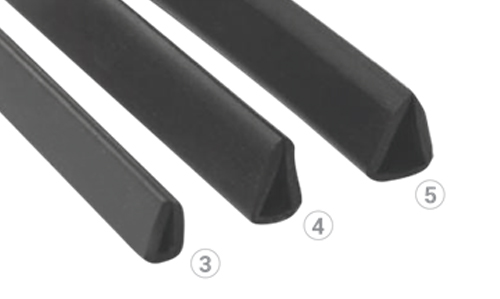

ESD Edge Protector for Sheets

Item Code Size Material SR (ohm) Hardness Heat Resistance
③ M37M-003-BK 10 mm × 2.5 mm × 100 m Rubber (EPDM) 10e4 ~ 10e5 70 120℃
④ M37M-004-BK 15 mm × 5 mm × 100 m
⑤ M37M-005-BK 15 mm × 9 mm × 100 m



Application : edge protection for sheets
