Chemical Resistant Apron, Sleeves, Coat and Gown are required to protect workers from contamination in Cleanroom or any other working areas handling chemicals as they are waterproof and anti-chemical. They are made of special coated and laminated ESD fabric(MDF-230) and have good ESD properties on the other side.
ESD Chemical Resistant Fabric
Description

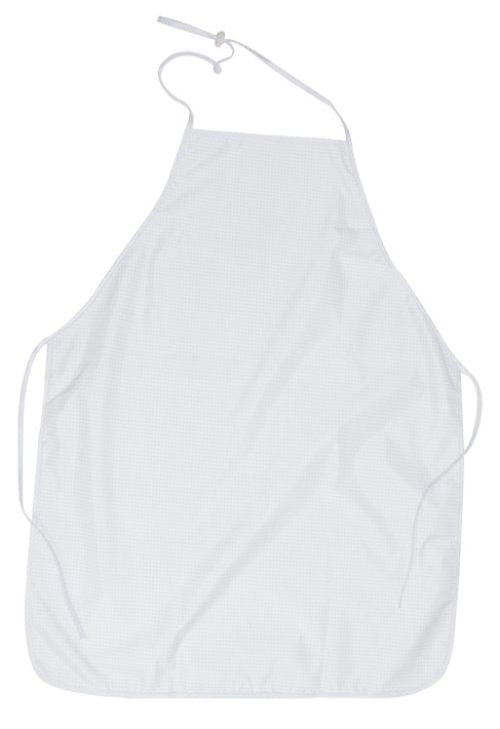

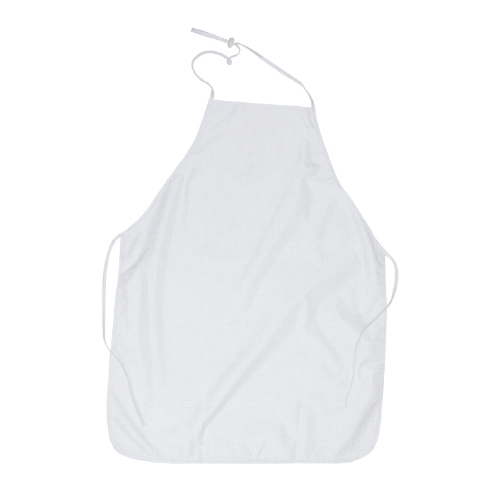

ESD Chemical Resistant Apron
 |
|
| Fabric | MDF-235 |
| Item Code | M08F-001 |
| SR | 10e6 ~ 10e7 ohm |
| Size | 620 mm(W)×770 mm(L) |
  |
|

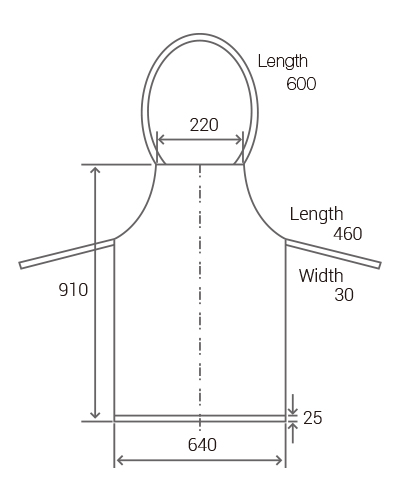

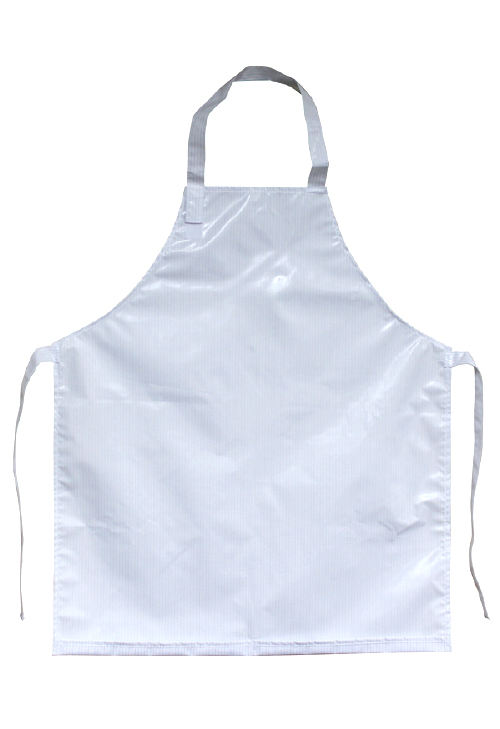

| Fabric | MDF-245 |
| Item Code | M25F-001 |
| SR | 10e6 ~ 10e7 ohm (back) 10e10 ~10e11 ohm (front) |
| Size | 640 mm(W)×910 mm(L) |

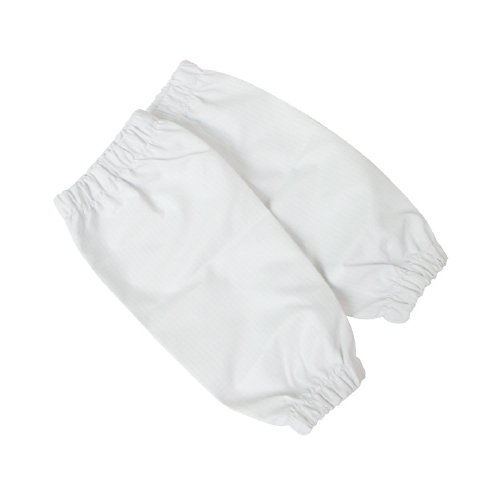

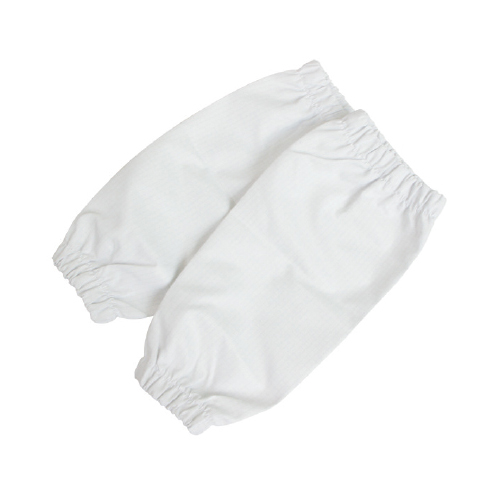

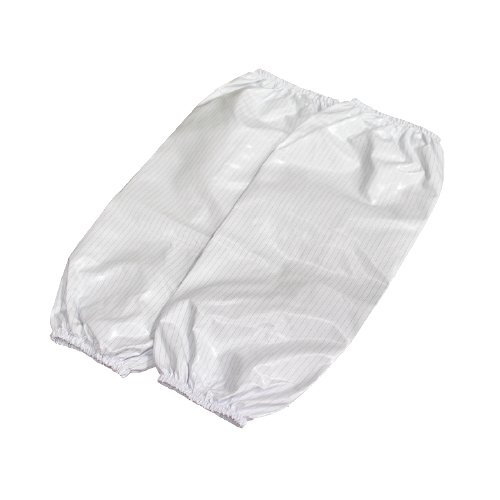

ESD Chemical Resistant Sleeves
 |
 |
||
| Fabric | MDF-235 | Fabric | MDF-245 |
| Item Code | M09F-001 | Item Code | M24F-001 |
| SR | 10e6 ~ 10e7 ohm | SR | 10e6 ~ 10e7 ohm (back) 10e10 ~10e11 ohm (front) |
| Size | 170 mm(W)×350 mm(L) | Size | 200 mm(W)×400 mm(L) |

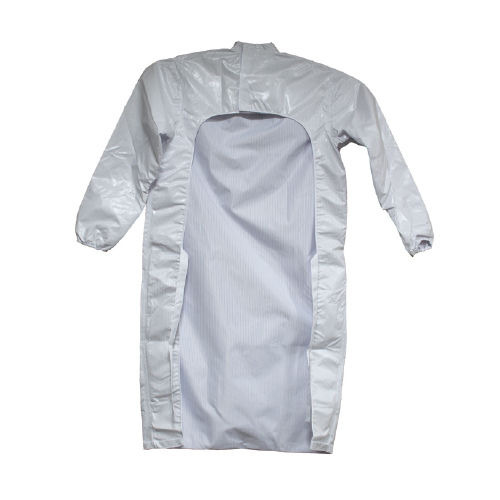

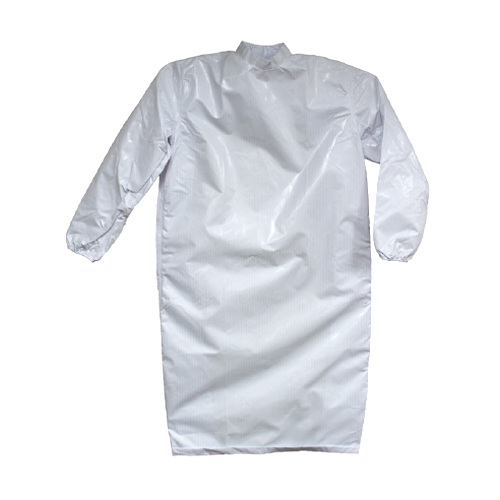

ESD Chemical Open-back Coat
| Front | Back | ||
 |
 |
||
| Fabric | MDF-245 | ||
| Item Cod | M26F-001 | ||
| SR | 10e6 ~ 10e7 ohm (back) 10e10 ~10e11 ohm (front) |
||
| Size | Chest | Length | Sleeves | Shoulder |
| S | 57 | 107 | 61 | 42.5 |
| M | 60 | 110 | 62 | 45 |
| L | 62.5 | 113 | 63 | 47.5 |
| XL | 65 | 116 | 64 | 50 |
| 2XL | 67.5 | 119 | 65 | 52.5 |
| 3XL | 70 | 122 | 66 | 55 |
(cm)

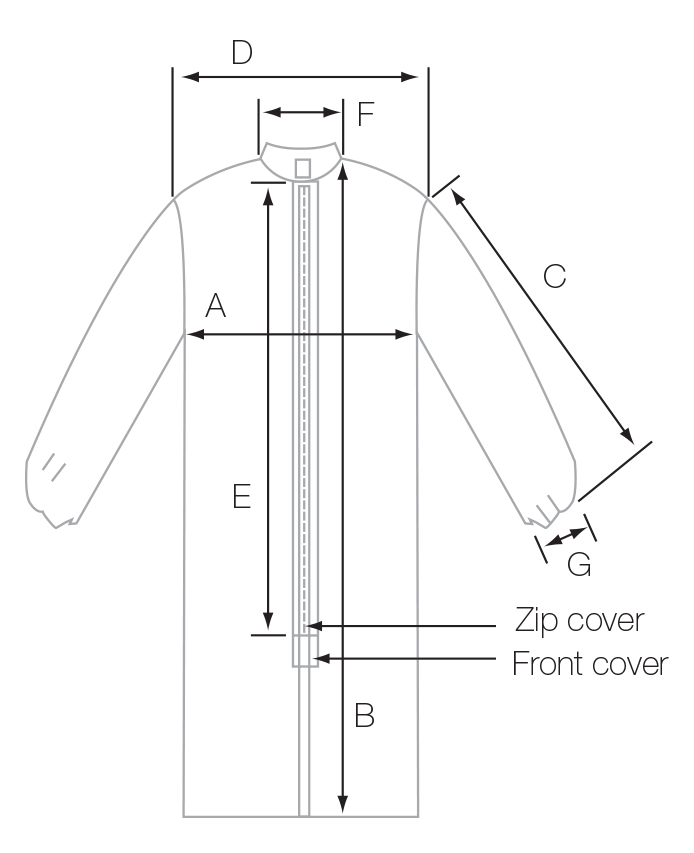

ESD Chemical Resistant Gown
 |
|
| Fabric | MDF-245 |
| Item Code | M30F-001 |
| SR | 10e6 ~ 10e7 ohm (back) 10e10 ~ 10e11 ohm (front) |
| Size | A | B | C | D | E | F | G |
| S | 51.5 | 101 | 57.5 | 39.5 | 53 | 50 | 19 |
| M | 54 | 104 | 58 | 42 | 53 | 50 | 19 |
| L | 56.5 | 107 | 59.5 | 44.5 | 53 | 50 | 19 |
| XL | 59 | 110 | 61.5 | 47 | 53 | 50 | 19 |
| 2XL | 61.5 | 113 | 62.5 | 49.5 | 53 | 50 | 20 |
| 3XL | 64 | 116 | 62.5 | 52 | 53 | 52 | 20 |
(cm)
