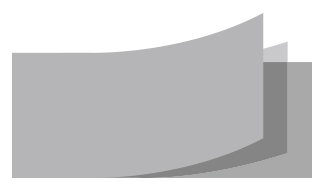

ESD Chemical Resistant Fabric (ECRF) is ideal for the environment where chemical-related products are used and handled. There is special PU coating on the fabric and the thin and chemical-proof film is laminated on the top of the coated fabric to achieve maximum chemical resistant properties. The ECRF can effectively protect workers from potential risks associated with exposure to dangerous and harmful chemicals and provides a particle and ESD-safe working environment. We can create a range of finished products with ECRF, such as ESD Arm Sleeves, ESD Aprons, ESD Open-back Coats and more.
ESD Chemical Resistant Fabric
Description
Technical Specifications
| Test | Warp | Weft | Unit | Test Method |
| Yarn | PFY 75D | PFY 100D | Denier | |
| ECF | F-901 (BASF) | – | ||
| Density | 192 | 92 | Threads/Inch | |
| Weave | 1/2 twill (5 mm stripe) | |||
| Dimension | 58″ / 60″ | inch × yd | ||
| Weight | 166 | GR/SQMT | ||
| Thickness | 0.18 ± 0.01 | mm | ||
| Friction Static Voltage (Back) |
＜ 100 | Volts | JIS-L1094B | |
| Surface Resistance | 10e10 ~ 10e11 (Surface) 10e6 ~ 10e7 (back) |
Ω | ASTM-D257 | |

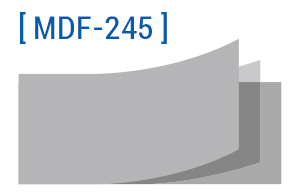

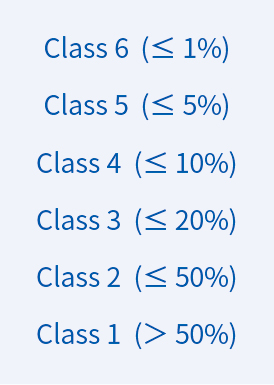

| Index of Chemical Penetration
(MDF-245) |
1. Sulfuric Acid (50%) – 0 | % | ISO 6530-2005 | |
| 2. Hydrochloric acid (36%) – 0 | ||||
| 3. Nitric Acid (50%) – 0 | ||||
| 4. Formic Acid (50%) – 0 | ||||
| 5. Hydrofluoric Acid (40%) – 0 | ||||
| 6. Sodium Hydroxide (40%) – 0 | ||||
| 7. Hydrogen Peroxide (30%) – 0 | ||||
| 8. Toluene (99.5%) – 0 | ||||
| 9. Acetone (99.5%) – 0 | ||||
| 10. Methanol (99.5%) – 0 | ||||
| 11. Hexane (95%) – 0 | ||||

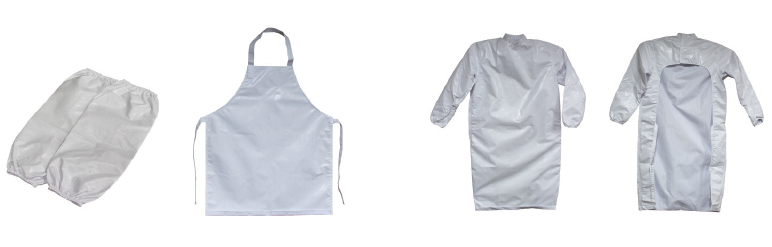

| Constructions |
|
|
||
REF
- ESD Arm Sleeves (M24F-001)
- ESD Apron (M25F-001)
- ESD Open-back Coat (M26F-001)
- ESD Chemical Resistant Gown (M30F-001)
