Conductive Parts Box
Free

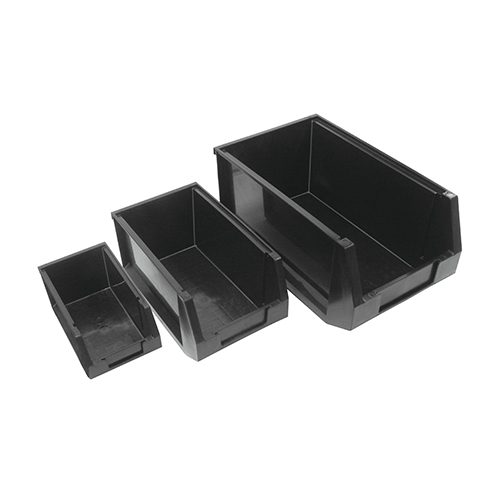

Conductive Parts Box

Product Inquiry +

Reviews

There are no reviews yet.

Be the first to review “Conductive Parts Box”

Need Help? Contact Us Leave Feedback

Category: .

Share
Descriptions Conductive Parts Boxes Test Methods

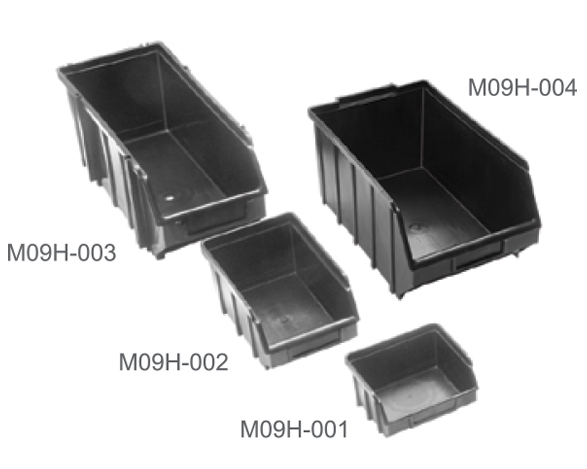

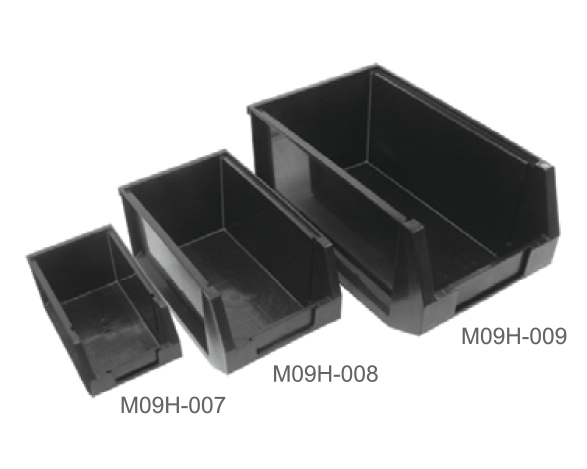

Item M09-H-001 M09-H-002 M09-H-003 M09-H-004 M09-H-005 M09-H-007 M09-H-008 M09-H-009
Code
Size (ID)
(L) X (W) X (H)mm
76 x 92 x 44 141 x 90 x 63 210 x 128 x 112 315 x 193 x 150 290 x 109 x 107 105 x 175 x 85 145 x 245 x 120 210 x 340 x 155
Weight/pc 48g 116g 366g 708g 438g 142g 350g 690g
Surface Resistivity
(Ohm/sq)
10E4 ~ 10E6 10E4 ~ 10E6 10E4 ~ 10E6 10E4 ~ 10E6 10E4 ~ 10E6 10E4 ~ 10E6 10E4 ~ 10E6 10E4 ~ 10E6 ASTM D991
 5KV Decay Time
(Sec.)
< 0.01 < 0.01 < 0.01 < 0.01 < 0.01 < 0.01 < 0.01 < 0.01 MIL-B-81705B
Material Conductive P.P. Conductive P.P. Conductive P.P. Conductive P.P. Conductive P.P. Conductive P.P. Conductive P.P. Conductive P.P.
