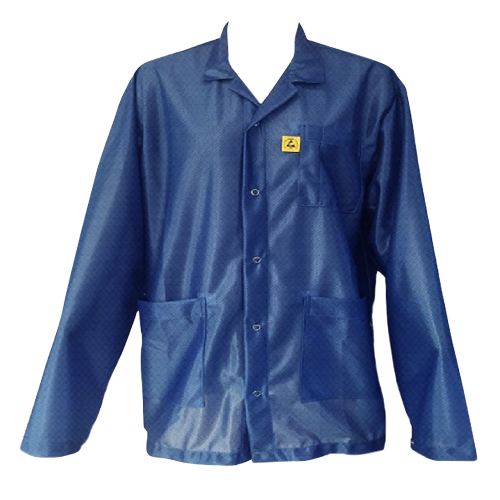

4 types of ESD Warp Knitted Fabrics having low surface resistance range of 10e5~10e6 ohm are suitable for being used in ESD Category 3 garment. As they are in different patterns and density, customers can choose the most suitable fabric with wide color options for their needs.
| Item Code | M15F-013 | M15F-014 | M15F-015 | M15F-016 |
| Model (P/N) | MDF-283 | MDF-284 | MDF-285 | MDF-286 |
| Descriptions | 5 mm diapered light fabric | 3 mm diapered fabric | 6 mm diapered fabric | 6×3 mm herringbone fabric |
| Composition | Polyester yarn 91% Conductive carbon yarn 9% |
Polyester yarn 93% Conductive carbon yarn 7% |
Polyester yarn 98% Conductive carbon yarn 2% |
Polyester yarn 87% Conductive carbon yarn 13% |
| Conductive Yarn | RESISTAT® F902 F044 | RESISTAT® F902 F044 | RESISTAT® F902 F044 | RESISTAT® F902 F044 |
| Width | 60″/61″ | 60″/61″ | 60″/61″ | 60″/61″ |
| Weight | 118 g/yard | 195 g/yard | 196 g/yard | 125 g/yard |
| Surface Resistance | 10e5 ~ 10e6 ohm | 10e5 ~ 10e6 ohm | 10e5 ~ 10e6 ohm | 10e5 ~ 10e6 ohm |

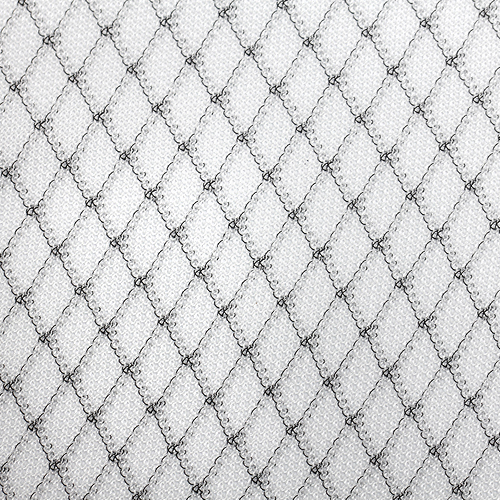

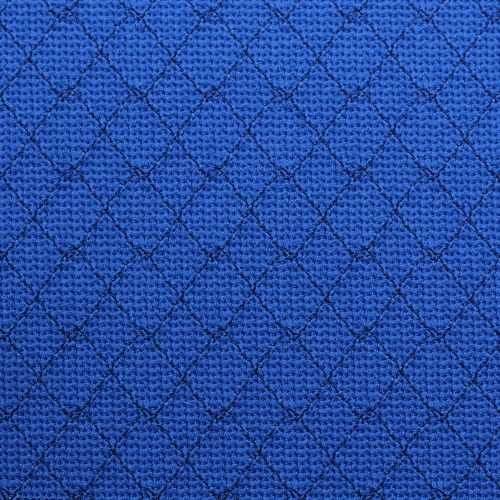

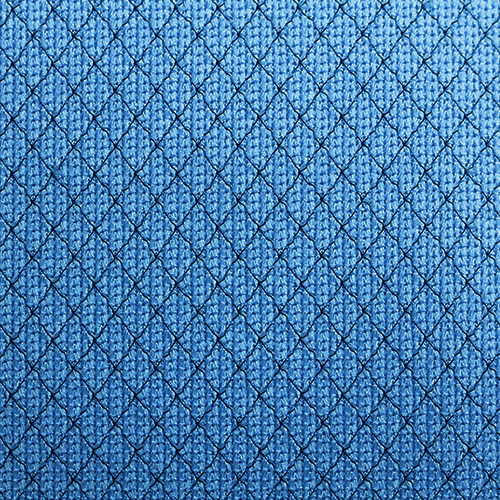

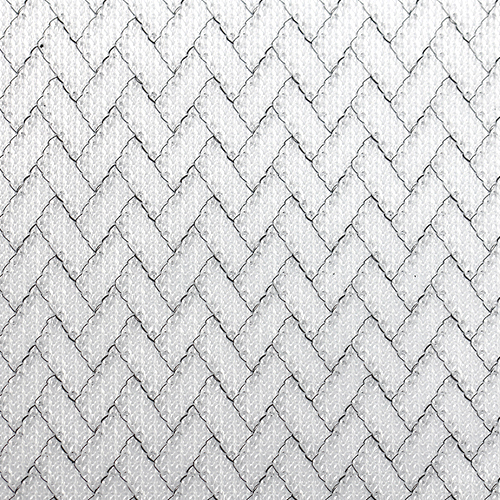

| Pattern |  |
 |
 |
 |
