KORENG

ESD Castor

“How to make ESD castor endure heavy duty
while keeping ESD sustainability?”

The answer is ‘homogeneous(TPU) ESD castor.’ Ordinary ESD castors are manufactured by applying antistatic coating to the wheels. The problem is that the more it is used, the more the coating film is damaged and the antistatic function decreases. However, this castor is the ESD homogeneous(TPU) that the antistatic performance does not decrease even when it is used in various environments for a long period. Also, even if it is ESD homogeneous, it can withstand up to 350 kg per castor. It features both durability and ESD sustainability.

Product Inquiry

Description

Features
  • ESD properties(RTT/RTG): <10e7 ohm
  • Homogeneous(TPU) ESD castor
  • A utility registered model

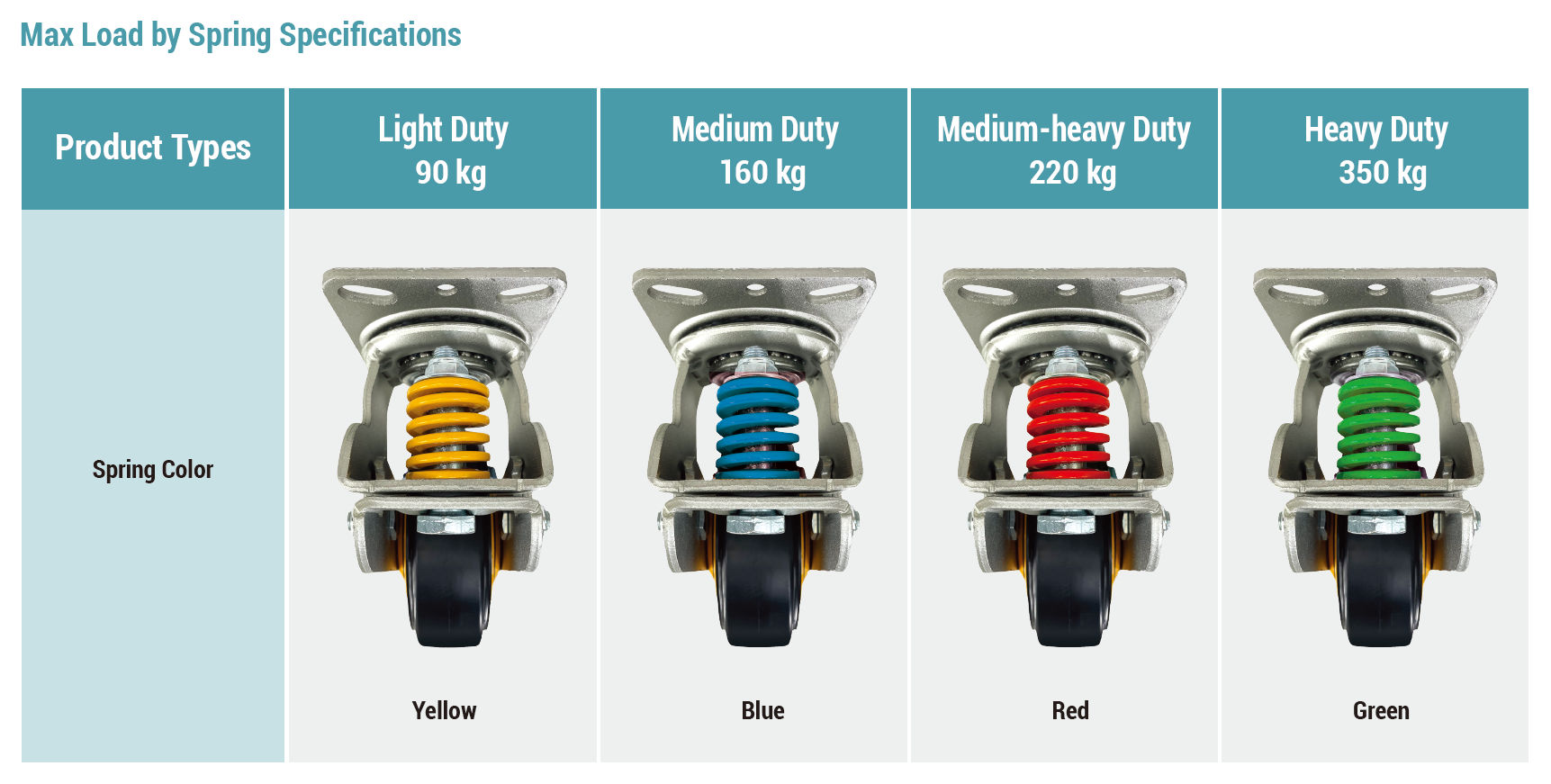

  • Easy-replacement of load springs to change the load capacity.
  • Shock absorber protects the durability of the castor itself and the stability of the sensitive cargo.
  • Heat treated double raceway ensures durability and smooth rotation of the wheel.

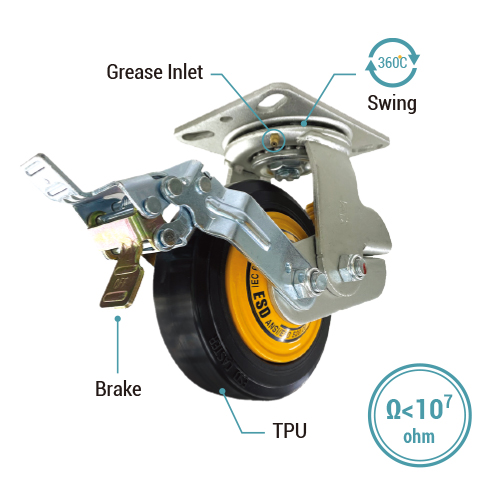

  • Easy to lubricate with grease inlet





ㆍANSI/ESD S20.20:2021 Requirement
ㆍANSI/ESD STM4.1-2017 Product Qualification
ㆍANSI/ESD11.13-2021
