Description
| Item Code | M02E-008 |

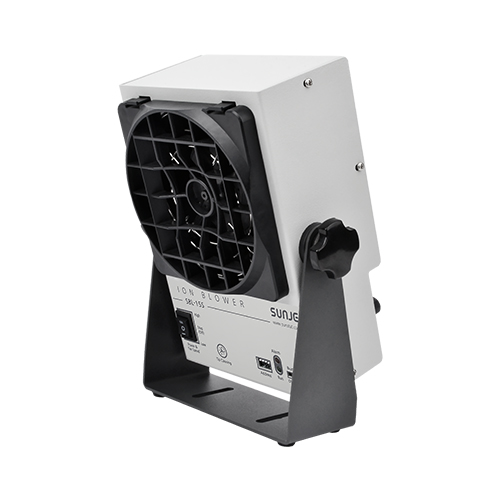

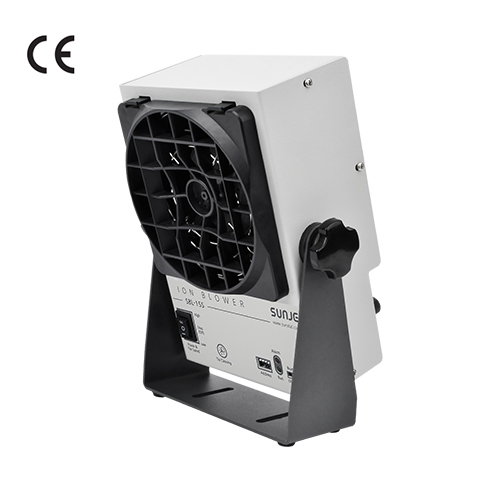

| Model | SBL-15S |
| Appearance |  |
| Input Power | DC 24V, Adaptor (AC 110 ~ 220V, 50/60 Hz, DC 24V, 2.5A) |
| Power Consumptions | 35W |
| Current Consumption | 159 mA (AC 220V) |
| Ion-Generation Method | Steady-State DC (Piezo) |
| Air Blow Volume | 4.84 ㎥/min |
| Noise Level | 62 dB |
| Ion Balance | ± 2V (600 mm, Maximum Air flow) |
| Ozone (O3) Concentration | ≤ 0.005 ppm |
| Operation Circumstance | 0℃ ~ +50℃ (32℉ ~ 122℉), 35% ~ 85% RH |
| Weight | 1.94 kg |
| Material (Body) | EGI (Electro Galvanized Iron) |
| Electrode | Tungsten (standard) / Titanium (option) |
| Mounting Method | Desk Top |
| Function | Tip Cleaning, 2 Steps Fan Speed |
| Alarm Function | Ion Unbalance Alarm |
| Interface | Remote On/Off, Run State, RS485, Alarm (Ion Unbalance), Tip Cleaning |
| Warranty | 1 year |
| Item Code | M02E-021 | M02E-026 | M02E-020 | M02E-027 | |

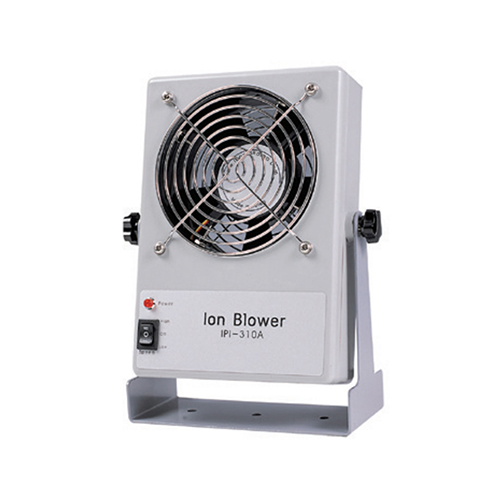

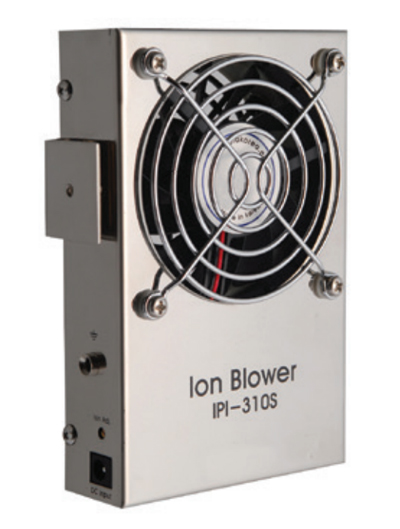

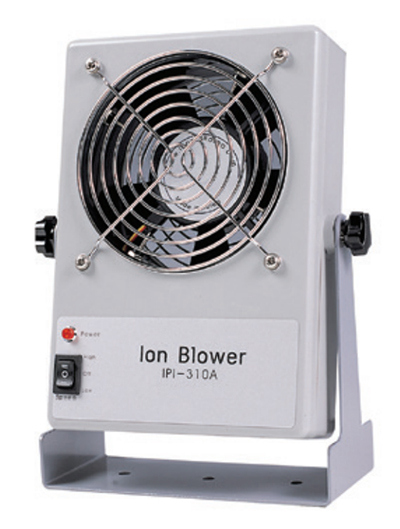

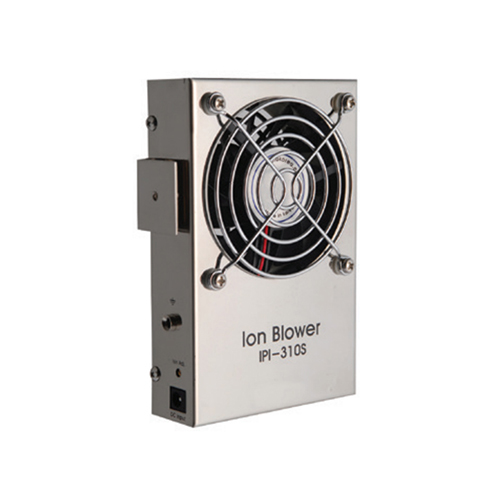

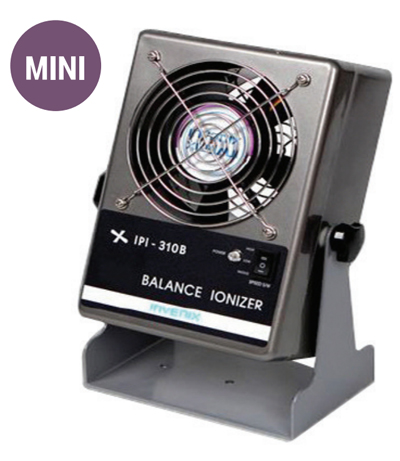

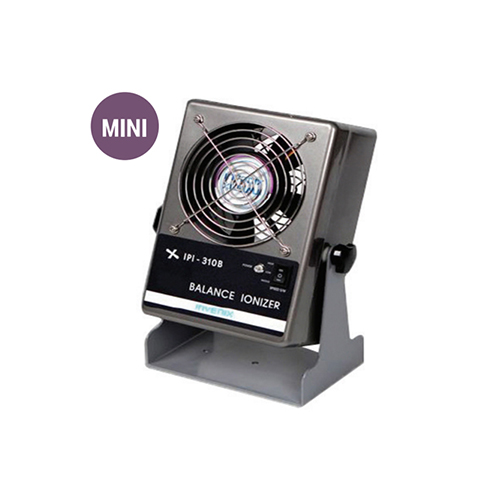

| Model | IPI-310A | IPI-310A (Brush) | IPI-310S | IPI-310B | |
| Appearance |  |
|
 |
 |
|
| Input Voltage | DC 24V (Adaptor Input voltage AC 75 ~ 275V)max., 6Watts | AC 75 ~ 230V max., 8Watts | |||
| Method of Ion Generation | Steady-State DC | ||||
| Ion Generation | adjustable | adjustable | Automatic control | Automatic control | |
| Wind Velocity | High: 105 cfm, Low: 58 cfm | High: 48 cfm, Low: 30 cfm | High: 105 cfm, Low: 58 cfm | ||
| Ion Balance | ± 5V (in 500 mm) | ± 5V (in 500 mm) | ± 5V (in 300 mm) | ± 5V (in 500 mm) | |
| Decay Time | 5 sec. (in 600 mm) | 3 sec. (in 300 mm) | 3 sec. (in 300 mm) | 3 sec. (in 300 mm) | |
| Material (Body) | ABS | ABS | SUS | ABS | |
| Electrode | Titanium | Titanium | Titanium | Titanium | |
| Size (mm) | 157(W) × 54(D) × 210(H) | 157(W) × 88(D) × 210(H) | 98(W) × 45(D) × 142(H) | ||
| Weight | 1.05 kg | 1.1 kg | 1.5 kg | 570 g | |
| Warranty | 18 months | ||||

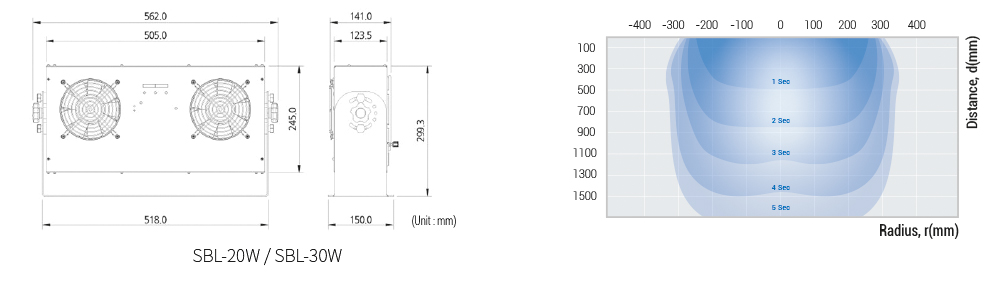

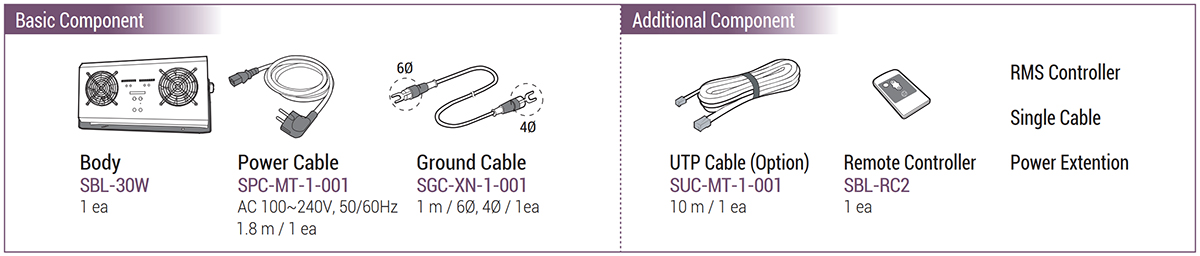

SBL-20W, SBL-30W
- Ion balance: ± 2V (at 60 cm distance, max. air flow)
- EMI (Electro-Magnetic Interference) and EMS (Electro-Magnetic Susceptibility)
- Automatic tip cleaning function
- Various Interfaces with automated factories (PLC, Computer)
- Ion unbalance alarm
- RMS (Real Monitoring System)
- Remote control
- Ion bar graph
- Wide range and long distance
| Item Code | M02E-003 | M02E-023 |

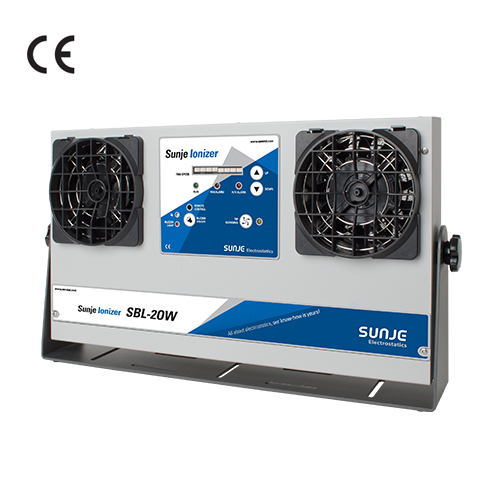

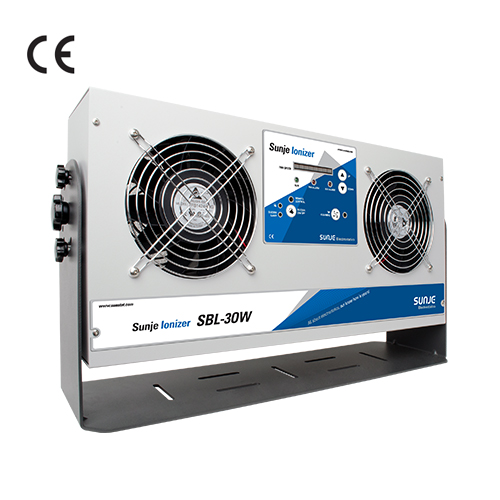

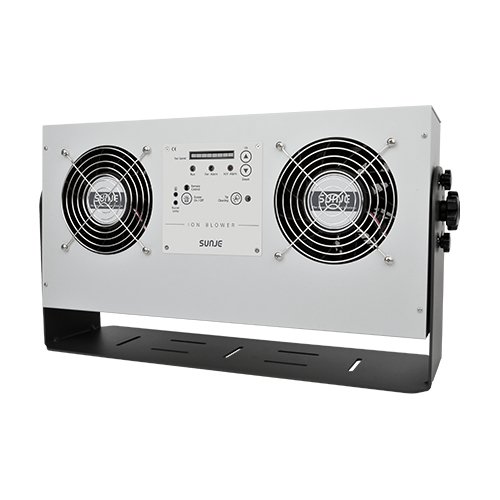

| Model | SBL-20W | SBL-30W |
| Appearance |  |
 |
| Input Power | AC 100 ~ 240V, 50/60Hz | |
| Power Consumption | 37W (Fan Speed Max.) | 50W (Fan Speed Max.) |
| Ion-Generation Method | Steady-State DC | |
| Air Blow Volume | 8.5 m³/min (Fan Speed Max.) | 12.4 m³/min (Fan Speed Max.) |
| Noise Level | 63 dB (1,000 mm, Fan Speed Max.) | 68 dB (1,000 mm, Fan Speed Max.) |
| Ion Balance | ± 2V (600 mm, Maximum Air flow) | |
| Ozone (O₃) Concentration | ≤ 0.005 ppm | ≤ 0.05 ppm |
| Operation Circumstance | 0℃~ 50℃ (32℉ ~ 122℉), 35%~85% RH | |
| Weight | 3.4 kg | 6.2 kg |
| Material (Body) | Aluminium | |
| Electrode | Tungsten / Titanium | |
| Mounting Method | Desk Top | |
| Function | 4 Step Fan Speed, Tip Cleaning | Remote Control, 4Step Fan Speed, Auto Tip Cleaning, Buzzer On/Off, Ion Balance Display |
| Alarm Function | Ion Unbalance Alarm, Fan Alarm | |
| Interface | Remote On/Off, Run State, Alarm, Tip Cleaning, RS485 | |
| Option | RMS (Real Monitoring System) | |
| Warranty | 1 year | |

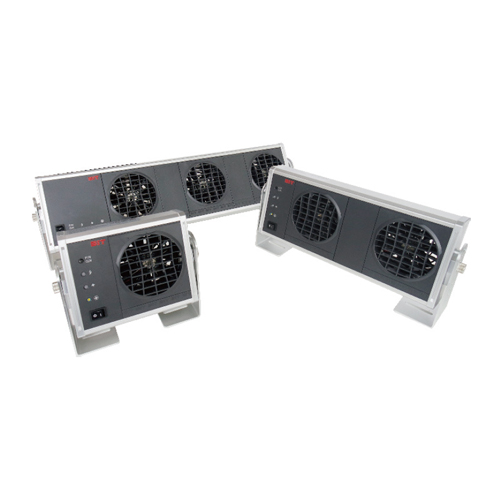

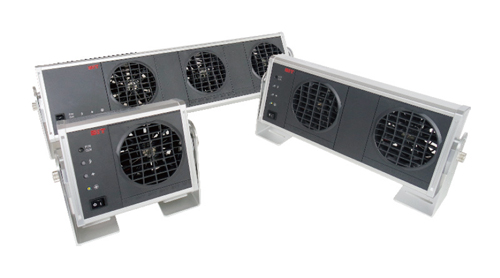

AMF-95 Series
- Auto pin cleaning function by one-touch button on controller
- Auto pin cleaning function can be operated on a daily basis by setting menu.
- Auto pin cleaning function is available with PLC communication.
- Able to choose products by the types of input voltage systems (DC 24V or AC 100~240V)
| Item Code | M02E-032 | M02E-033 | M02E-034 | M02E-035 | M02E-036 |
| Model | AMF-95 Series | ||||
| Appearance |  |
||||
| Fan | 1 fan | 2 fan | 3 fan | 4 fan | 5 fan |
| Input Voltage | AC 100 ~ 240V~, 50/60Hz or DC 24V±10% | ||||
| AC Power Consumption | Max. 24W | Max. 80W | |||
| DC Power Consumption | Max. 17W | Max. 55W | |||
| Output Frequency | 50 kHz | ||||
| Ion Generating Method | Corona Discharge | ||||
| Voltage Application Method | High-Frequency AC | ||||
| Material | Body: ABS / Emitter Pins: Titanium | ||||
| Emitter Replacement | Clean Button | ||||
| Ion Balance | Under average ±10 V | ||||
| Coverage Distance | 100 mm ~ 1200 mm | ||||
| Display | HV LED(G/R), FAN LED(G/R) | ||||
| Air Volume | Max. 1.7 ㎥ / min [per 1-fan] | ||||
| Ozone Generation | Under 0.05 ppm | ||||
| Ambient Temperature | 0℃ ~ +50℃ (32 ~ 122℉) | ||||
| Ambient Humidity | 35 ~ 65% RH (No Condensation) | ||||
| Voltage Application Method | High-Frequency AC | ||||
Advantages
- Various assembly configurations of fan modules and spacing boxes are enabled
- Easy maintenance & Cleaning

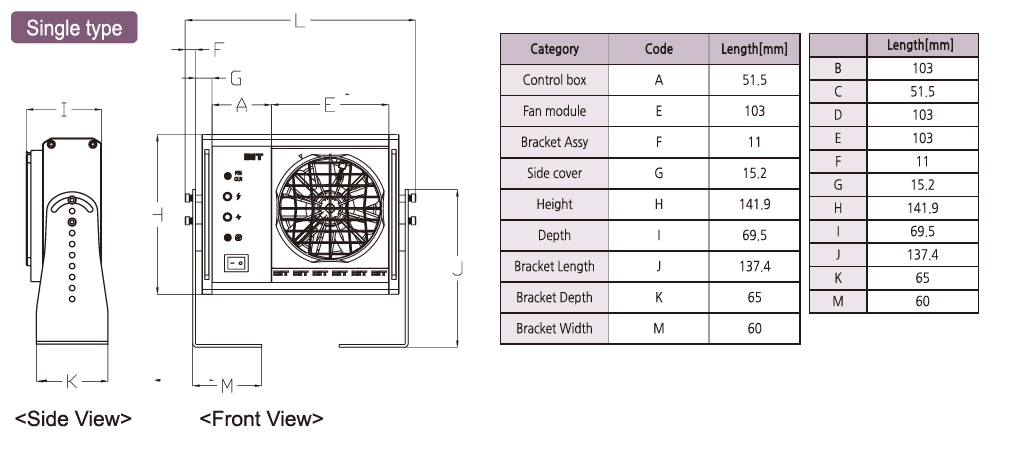

Size
