Lint Free Static Control Fabric

Polstar Cleanroom Fabrics are primarily composed of high multi-filament polyester and carbon filament yarn to insure maximum protection against particle contamination and ElectroStatic Discharge (ESD).
The Polstar design did not neglect to consider salient concerns of the workers including air permeability, wearability and durability.

Advantages

  • Over 60 different fabrics
  • Immediate delivery from our stock
  • Strict quality control from our profound knowledge and wide experience
  • Continuous development to meet customer's new requirement
  • Additional treatments, such as silicon free, teflon and antimicrobial are available.

Applications

  • Electronic and semiconductor Industries
  • Medical and Pharmaceutical Industries
  • Food Industry
  • Paint Industry
  • Aerospace Industry
Product Inquiry +

Need Help? Contact Us Leave Feedback

Category: .

Share

lint free static control fabric_total

Yarn (Denier) ECF Density
(Threads/Inch)
Weave Width
(Inch)
Weight
(GR/SQMT)
SR
(Ohm/sqmt)
Application
Warp Weft Warp Weft

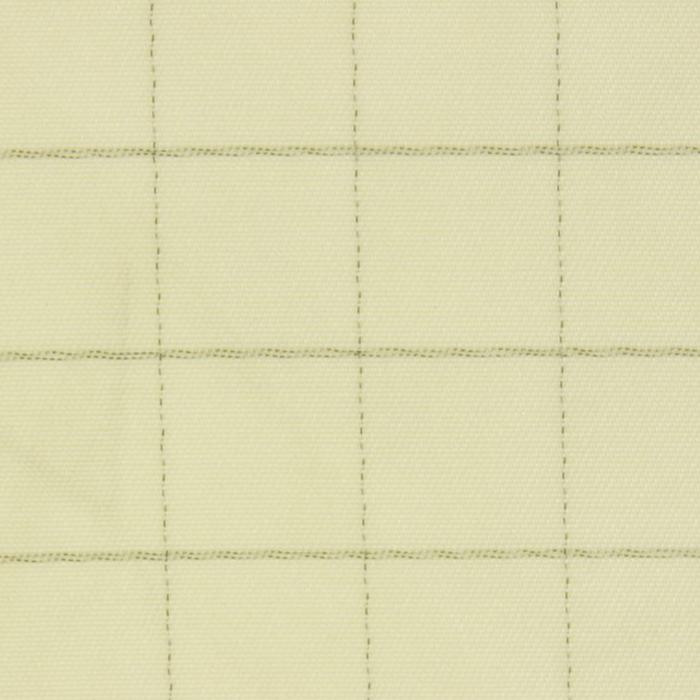

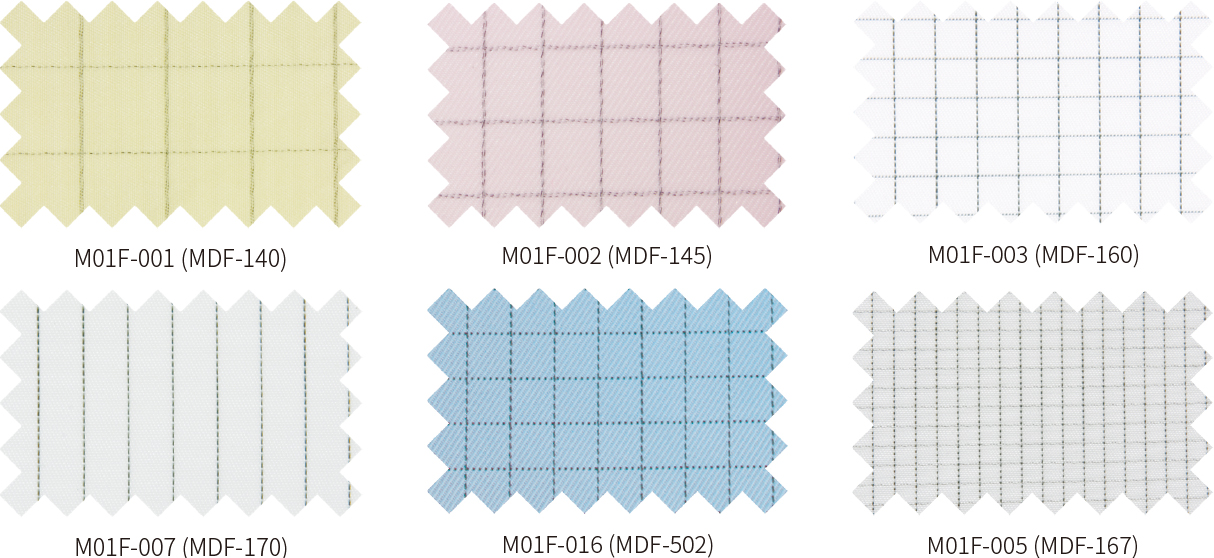

MDF-140 PFY 75D PFY 100D F-901 (BASF) 192 95 1/2 twill (10mm grid) 58″/60″ 116 10e5 – 10e6 ①, ②

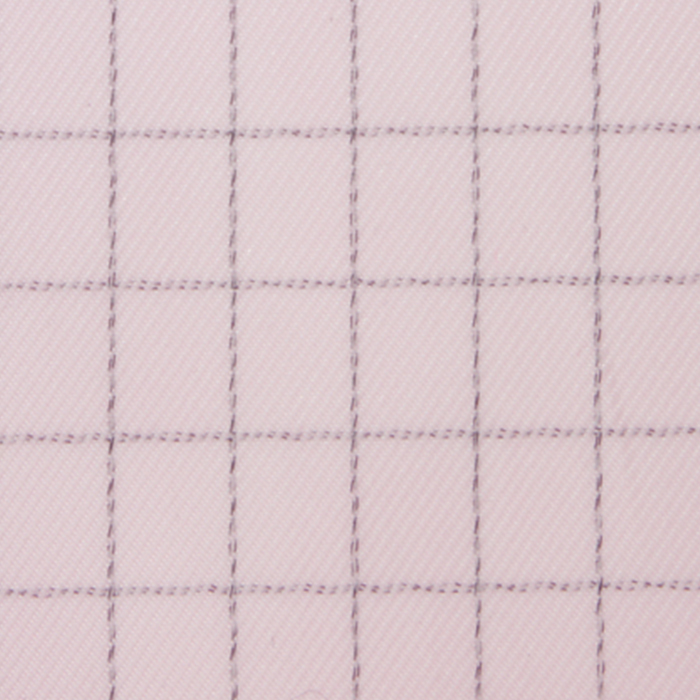

MDF-145 PFY 75D PFY 75D BASF 24DTEX 192 120 2/3 twill (7mm grid) 58″/60″ 109 10e5 – 10e6 ①, ②

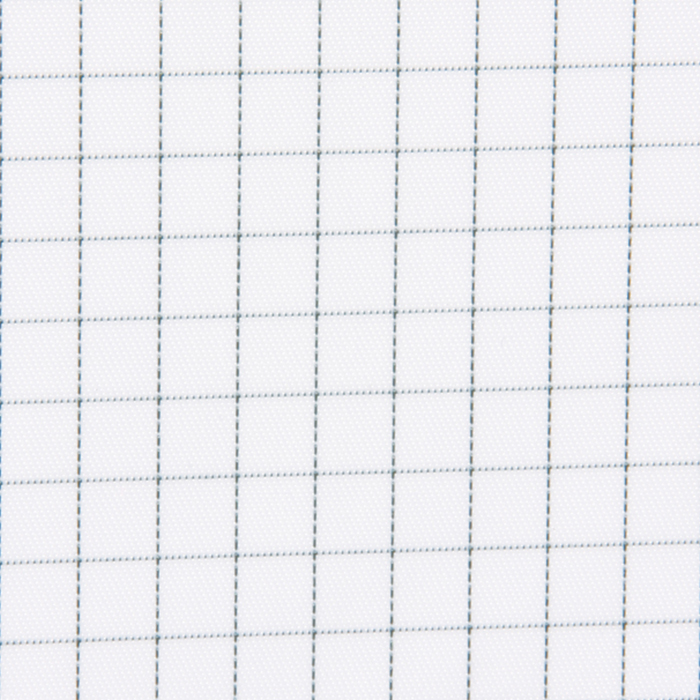

MDF-160 PFY 75D PFY 100D F-901 (BASF) 193 92 1/2 twill (5mm grid) 58″/60″ 114 10e5 – 10e6 ①, ②

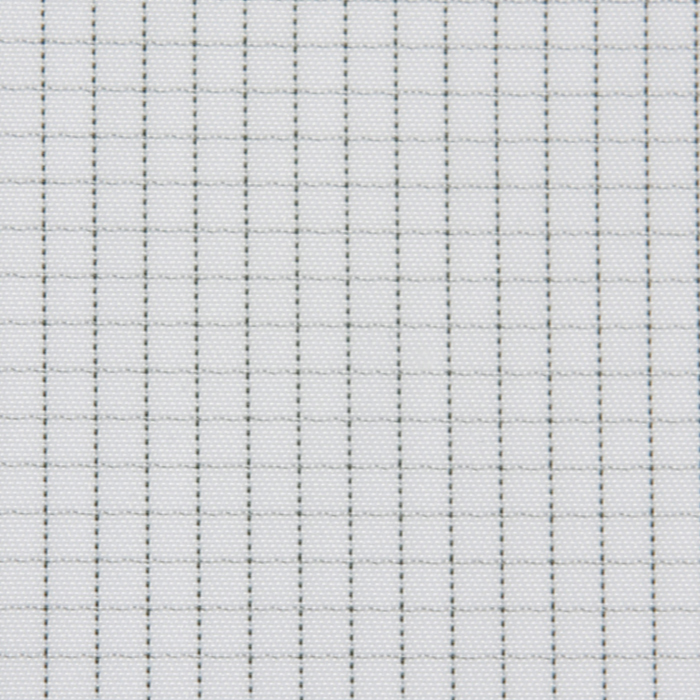

MDF-167 PFY 75D PFY 100D BASF 24DTEX 180 97 1/2 twill (2.5mm grid) 58″/60″ 105 10e5 – 10e6 ①, ②

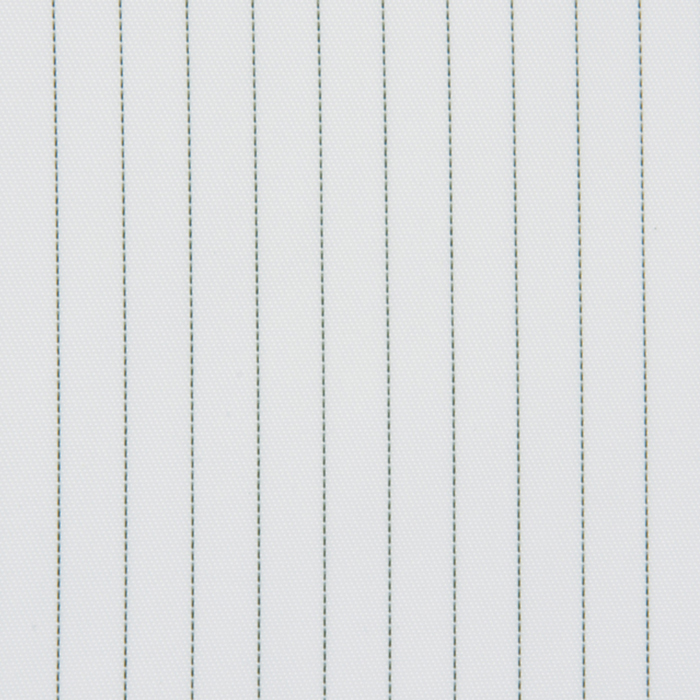

MDF-170 PFY 75D PFY 100D F-901 (BASF) 192 92 1/2 twill (5mm stripe) 58″/60″ 113 10e5 – 10e6 ①, ②
MDF-NIS-CK PFY 500D PFY 500D BASF 24DTEX 48 48 Taffeta (7mm grid) 58″/60″ 210 10e5 – 10e6

① Cleanroom garment
② ESD Lab coat / T-Shirt for electronic and semiconductor industries
③ Pharmaceutical industries
④ Food industry
⑤ Paint industry
⑥ Underwear
⑦ Hospital
