Description

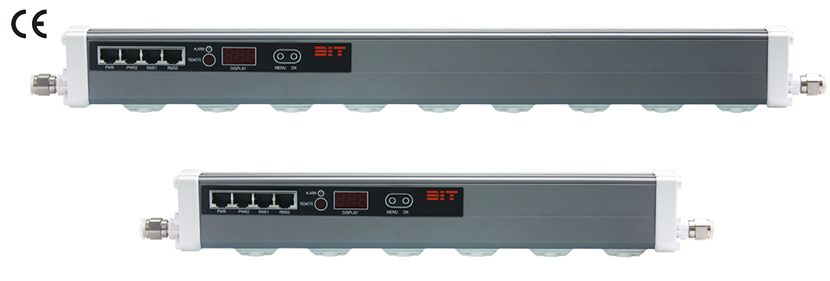

ASG-A Series

  • Cross-Sectional Area Reduced by 40% Comparing MB Series
    – Easy to install even in narrow space due to remarkably reduced size and weight.
    – New brackets, which is able to tilt 180 degree vertically, provide more freedom in installation.
  • 180 Degree Rotation
  • Low Maintenance
    – Special nozzle is designed to reduce air supply requirement and minimize pollutant production and accumulation on emitter pin
    – Special nozzle is designed using aerodynamics
    – Air supply requirement per emitter (0.3 MPa-Approx 5.1 ℓ/min / 0.1 MPa-Approx 2.0 ℓ/min)





Item Code M07E-501~514
Model ASG-A Series
Input Power DC 24V ± 10%
Input Current Max. 300 mA
Power Consumption Max. 8W
Emitter Voltage ±4.75 kV ~ ±5.5 kV (4 level adjustable)
Output Frequency 0.1 Hz ~ 60 Hz (Adjustable)
Ion Generating Method Corona Discharge
Voltage Application Method Pulsed AC
Material Body: ABS / Emitter pins: Tungsten
Emitter replacement Replaceable
Ion Balance Under average ±30V
Coverage distance  200 mm ~ 2000 mm
Air Type CDA (Clean dry air), N2
Pressure 0.05~0.5 MPa (Usually under 0.3 MPa)
Flor/per 1 Emitter 2 L/min (±10%) [Under 0.1 MPa]
Air Tube Diameter ø6 (Outside)
Ozone Generation Under 0.005 ppm
Ambient Temperature 0 °C ~ +50°C (32~122°F)
Ambient Humidity 35 ~ 85% RH (No condensation)

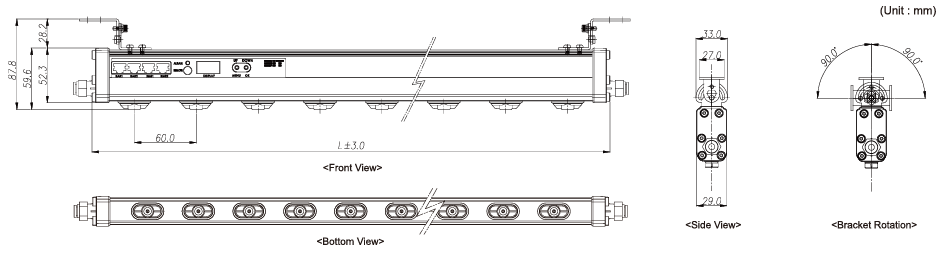

Size
tem Code Length (mm)
M07E-501 502
M07E-502 622
M07E-503 682
M07E-504 802
M07E-505 922
M07E-506 982
M07E-507 1102
M07E-508 1282
M07E-509 1582
M07E-510 1882
M07E-511 2122
M07E-512 2302
M07E-513 2482
M07E-514 2962
※ Ait-fitting part is not included in the length above.

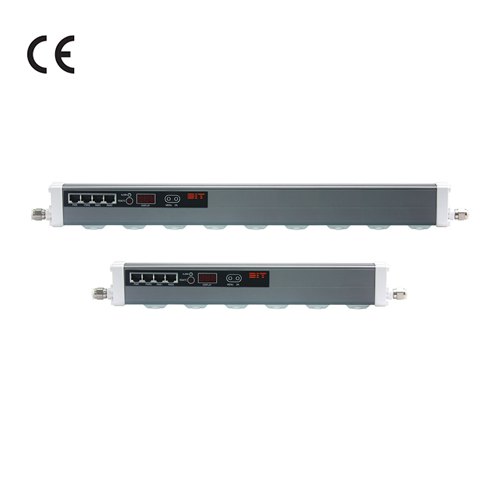

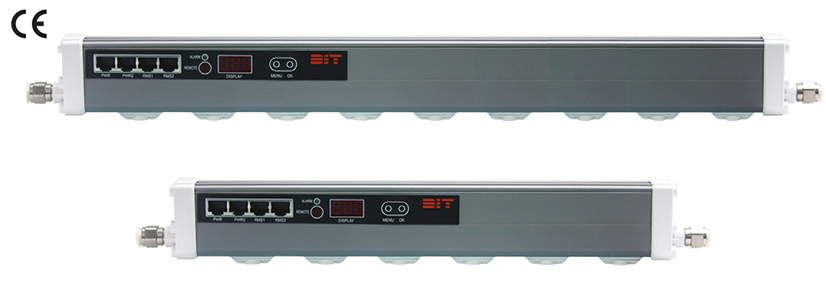

ASG-P Series

  • Cross-Sectional Area Reduced by 40% Comparing MB Series
    – Easy to install even in narrow space due to remarkably reduced size and weight.
    – New br ackets, which is able to tilt 180 degree vertically, provide more freedom in installation.
  • 180 Degree Rotation
  • Low Maintenance
    – Special no zzle is designed to reduce air supply requirement and minimize pollutant production and accumulation on emitter pin
    – Special no zzle is designed using aerodynamics
    – Air supply requirement per emitter (0.3 MPa-Approx 5.1 ℓ/min / 0.1 MPa-Approx 2.0 ℓ/min)





Item Code M07E-515~530
Model ASG-P Series
Input Power DC 24V ± 10%
Input Current Max. 900 mA
Power Consumption Max. 24W
Emitter Voltage ±4.75kV(±5%)
Output Frequency 29kHz
Ion Generating Method Corona Discharge
Voltage Application Method High-Frequence AC
Material Body: ABS / Emitter pins: Tungsten
Emitter replacement Replaceable
Ion Balance Under average ±30V
Coverage distance  100 mm ~ 1000 mm
Air Type CDA (Clean dry air), N2
Pressure 0.05~0.5 MPa (Usually under 0.3 MPa)
Flor/per 1 Emitter 2 L/min (±10%) [Under 0.1 MPa]
Air Tube Diameter ø6 (Outside)
Ozone Generation Under 0.005 ppm
Ambient Temperature 0 °C ~ +50°C (32~122°F)
Ambient Humidity 35 ~ 85% RH (No condensation)
Size
tem Code Length (mm)
M07E-515 262
M07E-516 322
M07E-517 382
M07E-518 502
M07E-519 622
M07E-520 682
M07E-521 802
M07E-522 922
M07E-523 982
M07E-524 1102
M07E-525 1282
M07E-526 1582
M07E-527 1882
M07E-528 2122
M07E-529 2482
M07E-530 2962
※ Ait-fitting part is not included in the length above.

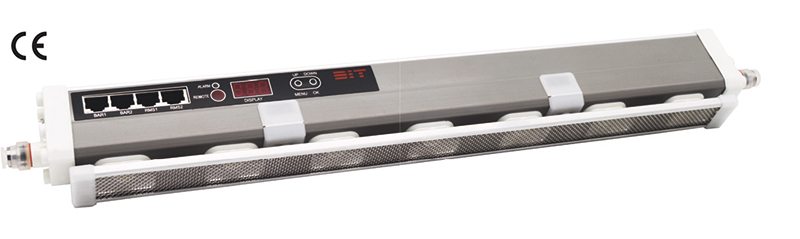

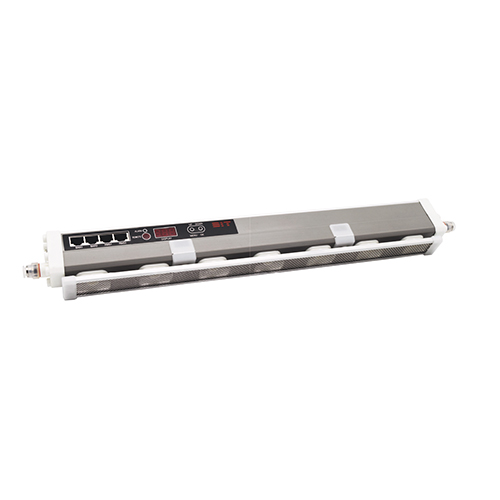

ASG-AFU Series

  • Stable Performance at a Very Close Distance
  • Easy Maintenance
    – Mesh cover is able to tilt 120 degree for easy maintenance of emitter pins: Users can open the mesh cover, clean and excahge emitter pins.
  • Maximizing Efficiency with Special Nozzle
    – Special nozzle is designed to reduce air supply requirement and minimize pollutant production and accumulation on emitter pin
    – Special nozzle is designed using aerodynamics
    – Air supply requirement per emitter (0.3 MPa-Approx 5.1 ℓ/min / 0.1 MPa-Approx 2.0 ℓ/min)





Item Code M07E-531~544
Model ASG-AFU Series
Input Power DC 24V ± 10%
Input Current Max. 300 mA
Power Consumption Max. 8W
Emitter Voltage ±4.75kV ~ ±5.5kV (4 level adjustable)
Output Frequency 0.5Hz ~ 100Hz (Adjustable)
Ion Generating Method Corona Discharge
Voltage Application Method Pulsed AC
Material Body: ABS / Emitter pins: Tungsten
Emitter replacement Replaceable
Ion Balance Under average ±35V (@Distance 50 mm)
Coverage distance  10 mm ~ 300 mm
Air Type CDA (Clean dry air), N2
Pressure 0.05~0.5 MPa (Usually under 0.3 MPa)
Flor/per 1 Emitter 2 L/min (±10%) [Under 0.1 MPa]
Air Tube Diameter ø6 (Outside)
Ozone Generation Under 0.005 ppm
Ambient Temperature 0 °C ~ +50°C (32~122°F)
Ambient Humidity 35 ~ 85% RH (No condensation)

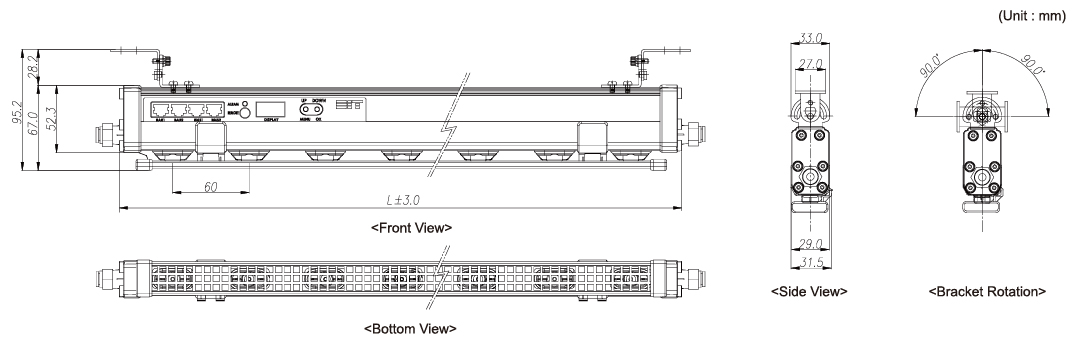

Size
tem Code Length (mm)
M07E-531 448
M07E-532 508
M07E-533 628
M07E-534 688
M07E-535 808
M07E-536 928
M07E-537 988
M07E-538 1108
M07E-539 1228
M07E-540 1288
M07E-541 1588
M07E-542 2128
M07E-543 2308
M07E-544 3028
※ Ait-fitting part is not included in the length above.
