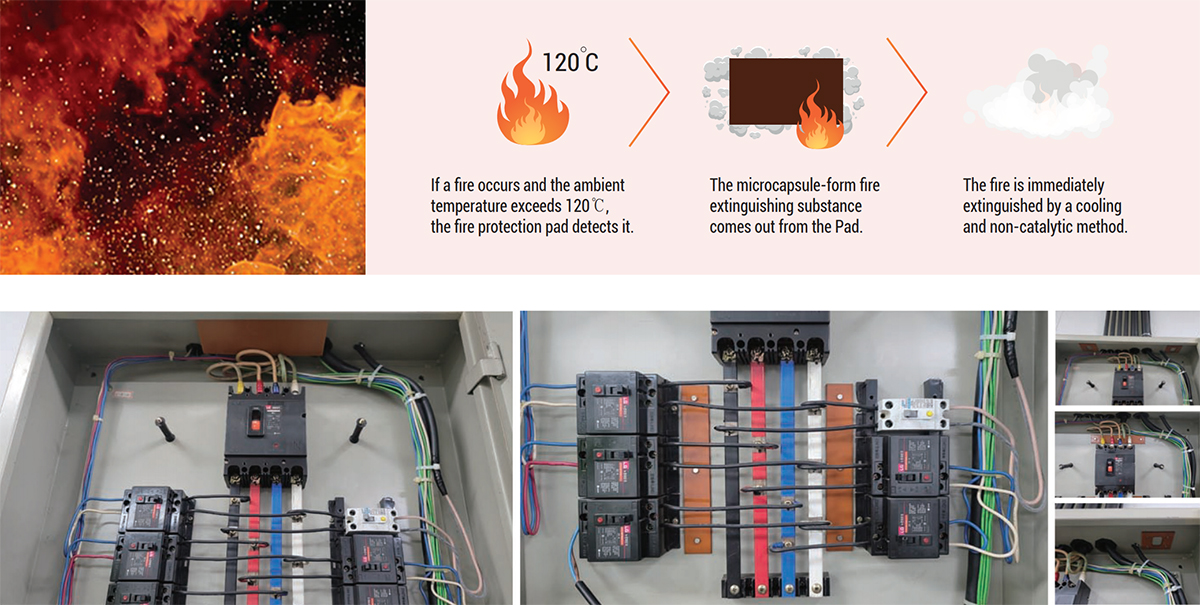

The Fire Protection Pad is made of a solidified extinguishing substance, 3M™ Novec 1230 fire Protection Fluid. If, due to any unforeseen circumstances, a fire occurs and the ambient temperature rises to over 100-120℃, the Pad detects the fire and instantly releases a microcapsule-form fire extinguishing substance on the fire area to suppress the fire.
Fire Protection Pad
Description
Features
- ECO Friendly fire extinguishing Agent (3M™ Novec-1230/FK-5-12)
– ODP(Ozone Depletion Potential: “0”
– ALT(Atmospheric Life Time: “0.014”
– GWP(Global Warming Potential: <1 - No harmful to human body
-Low concentration(4~6%), *NOAEL 10%
(* The no observed adverse eect level (NOAEL) is the greatest concentration or amount of a substance at which no detectable adverse eects occur in an exposed population.) - Excellent Electric Insulation
- Cooling and non-catalytic fire extinguishing method (not smothering)
| Item Code | Size (mm) | Operating Temperature |
Protective Volume |
Fire extinguishing Agent |
Installation Method |

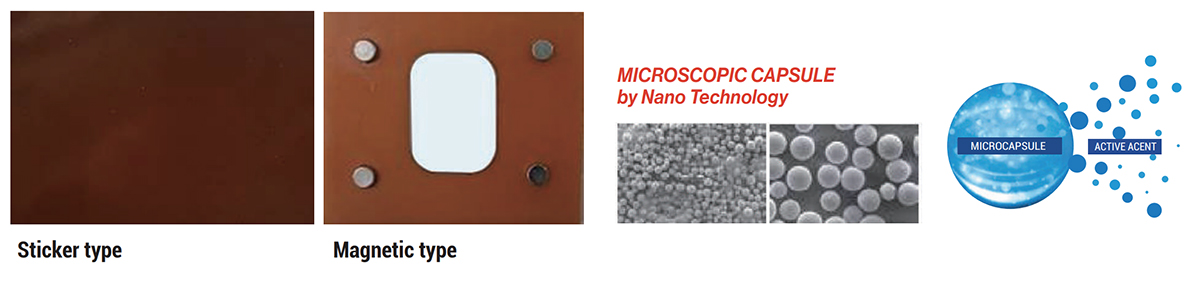

| C10F-001 | 3.0(T)×190×30 | 120℃ | 25 L | 3M™ Novec-1230/FK-5-12 | Magnetic |
| C10F-002 | 3.0(T)×200×100 | 120℃ | 92 L | 3M™ Novec-1230/FK-5-12 | Sticker |
Applications
Can be simply installed in any places where the risk of unexpected fire exists, such as Distribution Board(Panelboard), Cabinet Panel, Next to Fuse Box, Inside of Socket, etc.
