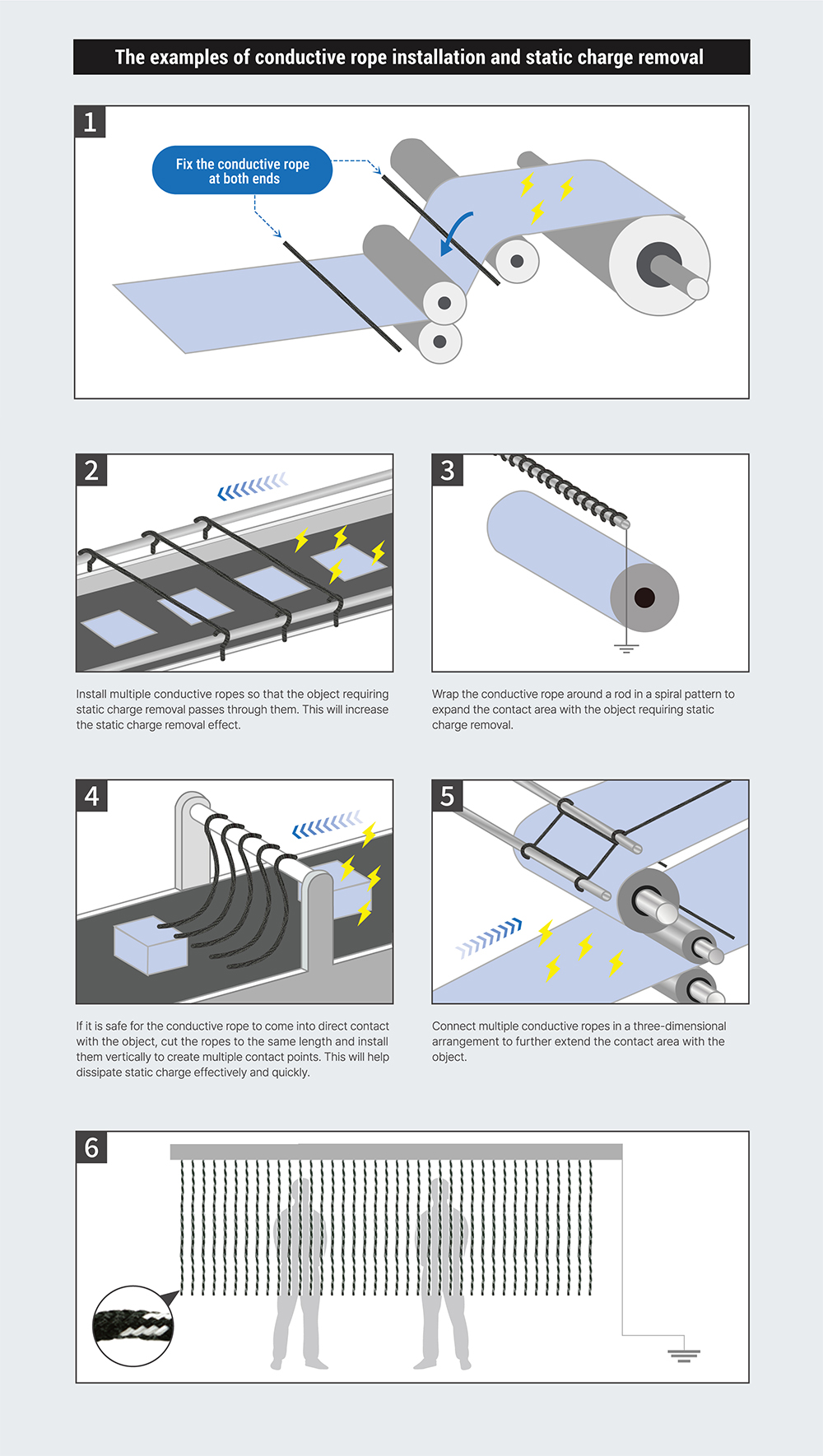

The Conductive Rope is designed to serve as the grounding path of static charge accumulated on the human body, materials, transport equipment, etc. It provides a quick and easy way to discharge static electricity with a simple touch of the ropes.
There are two types of conductive ropes available in our range. The M14Y-002 is particularly suitable for high static charge environments as it offers very fast static charge dissipation due to its low resistance value of 10e3 ohm or lower.

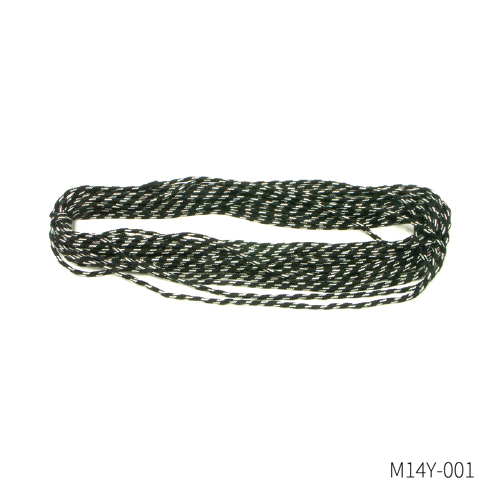

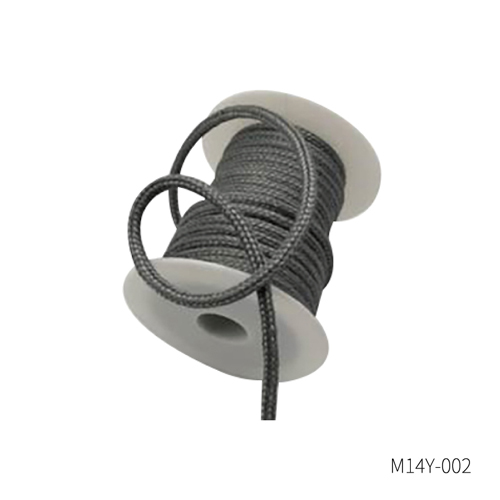

| Item Code | M14Y-001 | M14Y-002 |
| Color | Black & White mixed | Dark Grey |
| Composition | Polypropylene 93% , Stainless steel fiber 7% | 316 Stainless Steel Fiber |
| Weight | 9 g/meter | 19 g/meter |
| Dia | 7 mm | 4 mm |
| Surface Resistance | 10e3~5 ohm | < 10e3 ohm |
| Packing | 100 yards/hank | 30 m/cone |
Features of Conductive Ropes
- Efficiently discharges static electricity from various objects
- Flexible installation options
- Enhanced performance for high static charge environments (M14Y-002)
