Description

Single chamber type

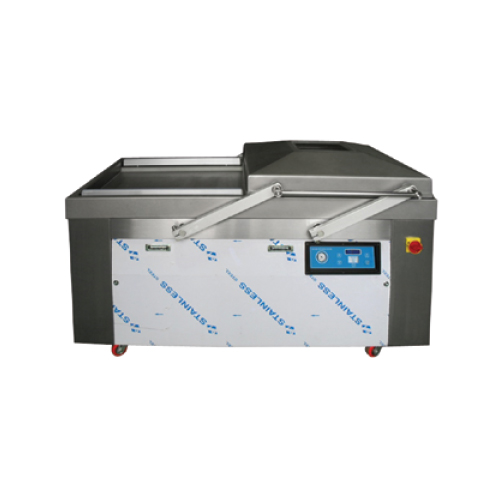

Double chamber type
Features for Vacuum Sealer for single chamber
  • Table and stand models
  • Transparent acrylic cover for packing process check-up (option: stainless steel cover)
  • Easy operation thanks to a simple digital controller
  • Good durability and strong for corrosion thanks to stainless steel case.
Features for Vacuum Sealer for double chamber
  • Higher work capacity with double chambers
  • Cover is made of aluminum (option: stainless steel cover)
  • Easy operation thanks to a simple digital controller
  • Good durability and strong for corrosion thanks to stainless steel case.
  • Easy to clean



Item Code Sealing Size(mm) Chamber Inner Size(mm) Chamber Outer Size(mm) Work Capacity
(depend on the items)
Vacuum Pump Net Weight (kg) Electricity
Width Length
M41E-026 3.2 415 430 × 455 × 160 480 × 550 × 430 1~3 times/min 400 L 49 1ph, 220v/60hz
(50hz available)
M41E-027 3.2 500 510 × 620 × 170 570 × 723 × 970 600 L 120
M41E-028 3.2 600 620 × 600 × 170 680 × 703 × 970 600 L 130
M41E-029 3.2 600 620 × 700 × 170 680 × 800 × 970 800 L 145
M41E-030 10 910 940 × 450 × 155 1000 × 550 × 970 600 L 130
M41E-031 10 750 810 × 690 × 170 1700 × 1000 × 1050 2~3 times/min 2000 L 330 3ph, 220v/380v
60hz (50hz available)
M41E-032 10 750 950 × 800 × 180 1700 × 1025 × 1325 3200 L 370
M41E-033 10 850 950 × 800 × 200 1900 × 1025 × 1325 5000 L 450
