Polymide film with thermal resistant silicone adhesive and antistatic properties

Item Code M13T-000
Model PT-APT
Surface Resistance (Back Side) 10e5 ~ 10e8 ohm
Thickness 65 ㎛
Size 10 mm, 20 mm, 25 mm, 50 mm×33 m/roll,
1000 mm× 33 m (Jumbo roll)
Packing 60 rolls/ctn (25 mm×33 m)
30 rolls/ctn (50 mm×33 m)
Features
  • Heat resistance: 250℃
  • Flame retardant
  • Excellent solvent and chemical resistance
Applications

Masking PCB during a wave soldering or a solder dip process

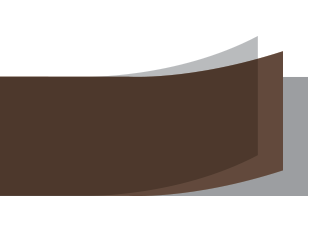

Constructions



  • Antistatic treatment
  • Polymide film (25 ㎛)
  • Silicone adhesive (40 ㎛)
