The 3 layer Static Dissipative Mat consists of a smooth PVC top, perforated PVC bottom layer and a conductive grid mesh layer in the middle. The conductive mesh layer provides a fast discharge path to ground and the energy absorption of components susceptible to physical shock by its unique structures.
Features
- Smooth surface
- Easy to pick up small components on the mat
- Excellent electrical properties and performance
- Carbon free constructions
- Easy cleaning with soap and water without affecting its static dissipative properties
Item Code | M16M-000-GR | M16M-000-GE | M16M-000-SB | ||
Width (Inch, cm) | 24″, 36″, 48″, 60 cm, 90 cm, 100 cm, 120 cm | ||||
Material | PVC + conductive grid mesh + foamed PVC | ||||
Length (m) | 10, 15 | ||||
Thickness (mm) | 3 ± 5% | ||||

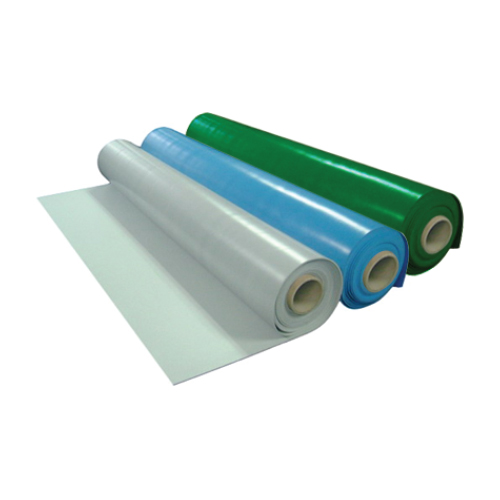

Color | Light Blue, Grey, Green | ||||
RTT (Ω) | ≤ 10e9 | ||||
RTG (Ω) | ≤ 10e9 | ||||
Heat Resistance (℃) | Max 90 | ||||

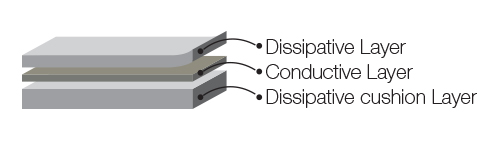

Constructions |
